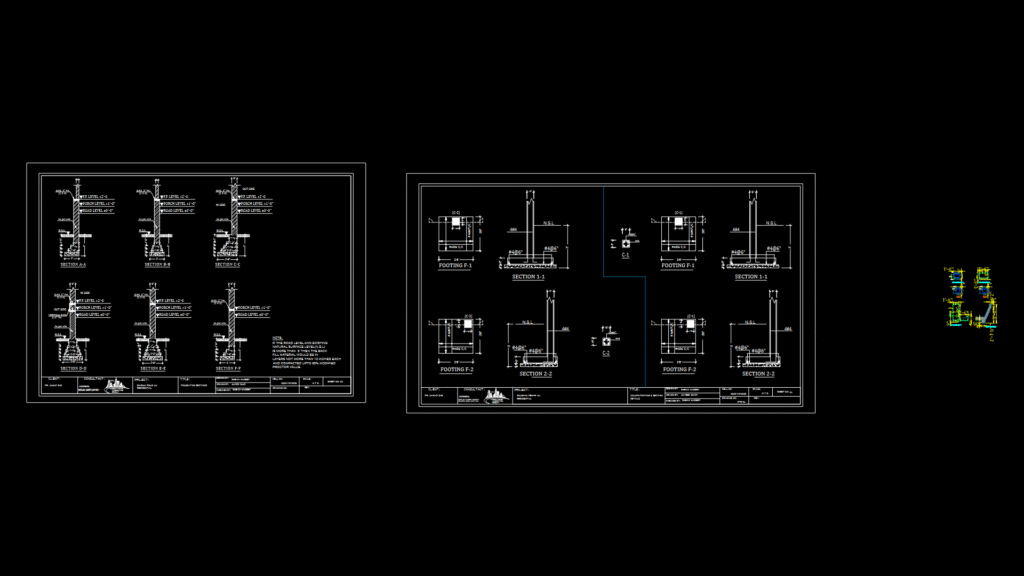

This drawing provides comprehensive structural details for residential building columns and their footings. This plans include multiple foundation sections (A through F) with detailed reinforcement specifications for both column types (C-1 and C-2). Column C-1 features 9″ square dimensions with 4#4 vertical reinforcement and #4@6″ ties, while C-2 is 18″ with more substantial reinforcement. Footings F-1 and F-2 are depicted with their respective dimensions and rebar configurations, including #4@6″C/C grid reinforcement. The foundation design accommodates different site conditions with specific notes about backfilling procedures for situations where road level differs from natural surface level (N.S.L.) by more than 5 feet. Concrete specifications for PCC (1:4:8) and DPC (2″ thick) are indicated, with vertical DPC (3/4″ thick) at the interface between inside and outside faces. The drawing includes elevation references with finished floor level at +2′-0″, porch level at +1′-0″, and road level at ±0′-0″.
Residential Column footing and Foundation Section Details
