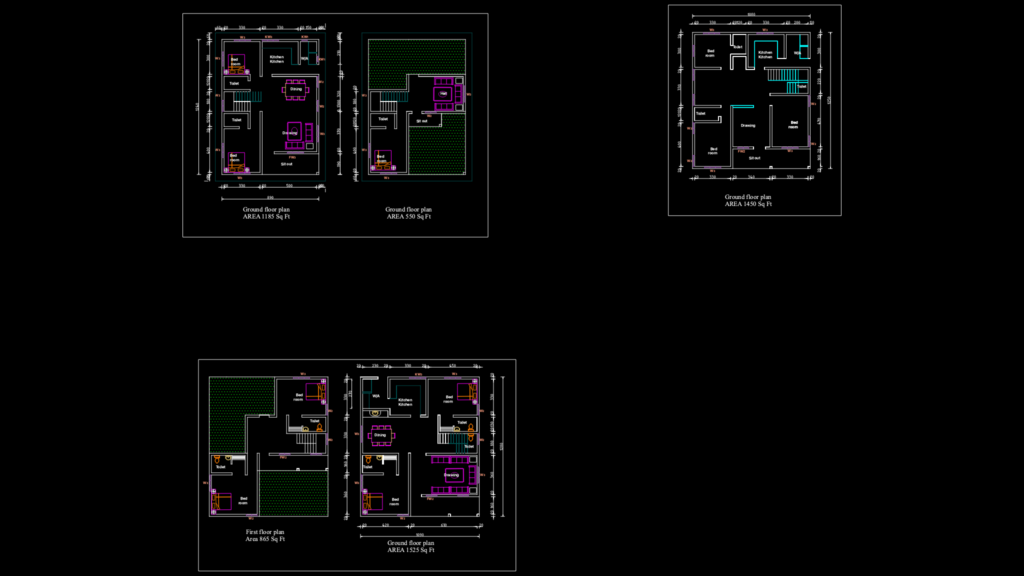

Residential building plan for construction in Kollam, Kerala (India) featuring multiple floor layouts with detailed room specifications. The ground floor (91-102 m²) includes standard living spaces with specified door and window dimensions: main doors (100×210 cm), secondary doors (90×210 cm and 80×210 cm), and windows (100×150 cm).
Room Configuration:
– Bedroom dimensions: 330×350 cm and 330×330 cm
– Drawing room: 330×630 cm
– Dining area: 330×330 cm
– Kitchen: 330×330 cm with standard sink fixture
– Bathroom: 150×170 cm with toilet fixtures
– Sit-out area: 330×150 cm
The drawing includes furniture placement, plumbing fixtures, and building envelope details conforming to Kerala Municipal Building Rules (KMBR). Site location indicates Kollam district with access roads and neighboring structures marked. The plan incorporates rainwater harvesting tank and septic system placement, essential for Kerala’s regulatory compliance.
