Carlos Barbosa Two-Story Residential Architectural Set

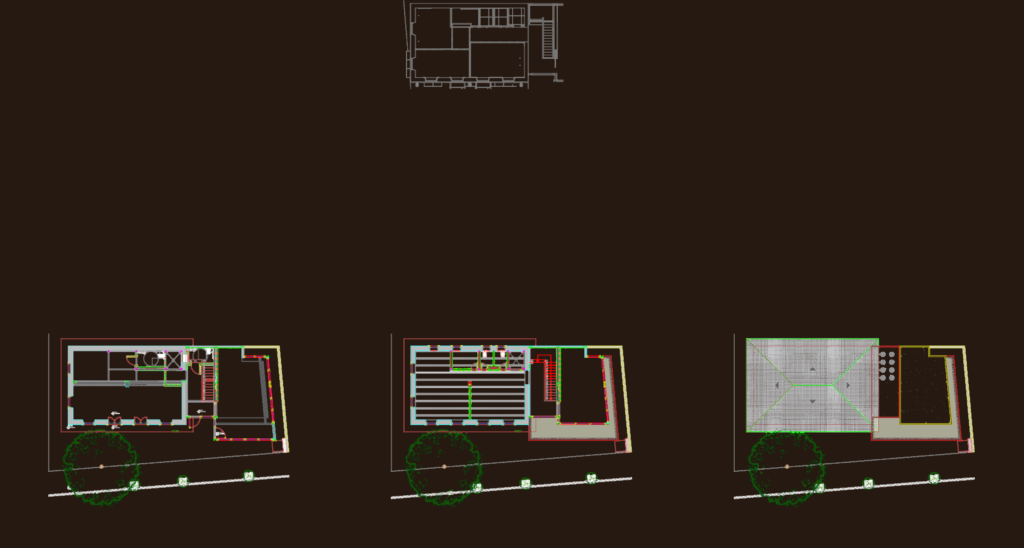

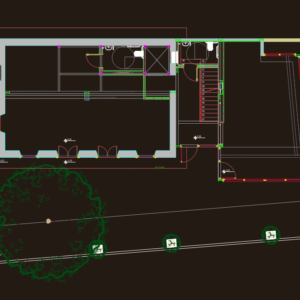

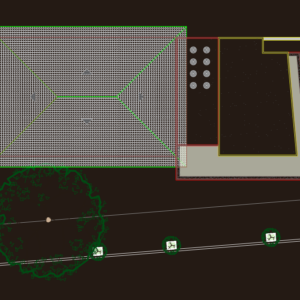

Architectural set for a two-story residence. includes ground floor & upper floor plans, roof layout, and landscaping with fruit trees & garden areas. we’ve also got electrical points for sockets/switches & some structural notes for steel and wood beams. Includes blocks for: – Doors (giro, principal) – Windows (lateral, superior) – Bathroom fixtures (sanitário, cuba) – Trees & planters – Electrical symbols (tomadas, interruptores) – Stairs (escada) – Steel I-beams & wood pillars

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Portuguese
Materials
Steel, Wood, Concrete
Units
Metric
Area
50 – 149 m² (538.2 – 1603.8 ft²)
Features
A/C, Parking, Garden / Park
Uploaded by
CAD Corner
Category
House, Residential
Published
Jun 18, 2026
Price $2.58
