Project Overview

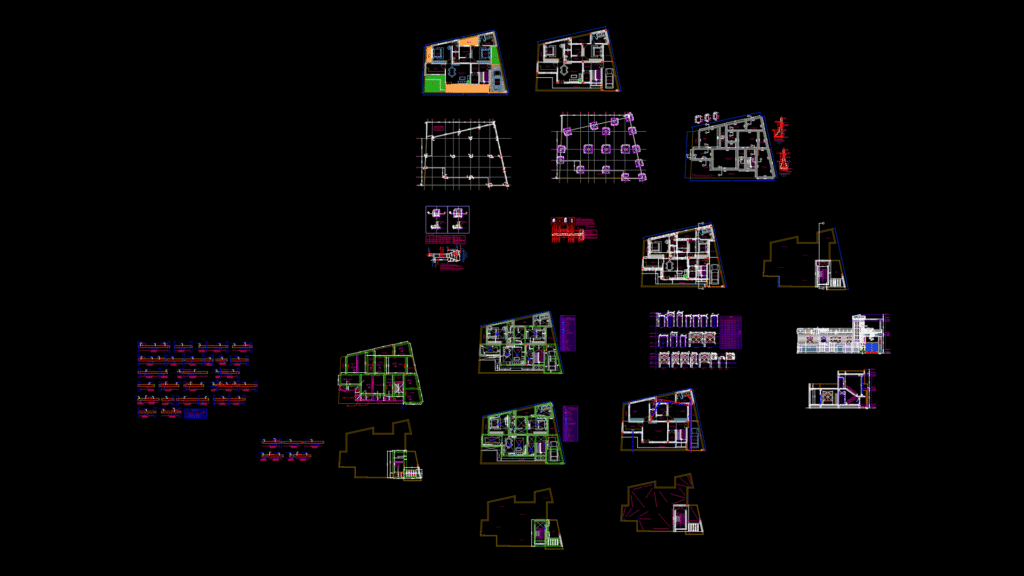

This comprehensive ground floor layout plan integrates architectural, structural, and MEP components for a residential building with dimensions approximately 60′ x 50′. The drawing features detailed structural framing with reinforced concrete elements including:
Structural Framework:
– Multiple beam types identified (SB-1 through SB-30) with 9″×18″ and 9″×21″ cross-sections
– Horizontal beams (HB) of 6″×9″ and 6″×12″ dimensions with specified reinforcement (#16 bars)
– Column layout with reinforcement details including 6#16 bars and ring spacing specifications
– Foundation and plinth beam details with masonry foundation walls
Architectural Components
The plan showcases a residential layout with spaces including:
– Kitchen: 13′-9″ × 7′-1½”
– Dining/living area: 17′-9″ × 14′-1½”
– Store room: 7′-10½” × 7′-6″
– Multiple doorways (D1-D9) and window openings (W1-W5, V1-V3) with detailed schedules
Key elevations include:
– Finished floor level at ±0′-0″
– Lintel levels at +7′-3″ (inner) and +9′-6″ (outer)
– Sill levels at +2′-6″, +3′-6″, and +4′-6″
Electrical layout indicates light fixtures, switches, outlets, and provisions for split AC units. Plumbing features include sanitary fixtures, waste pipes, and drainage with slope indicators and manholes.
