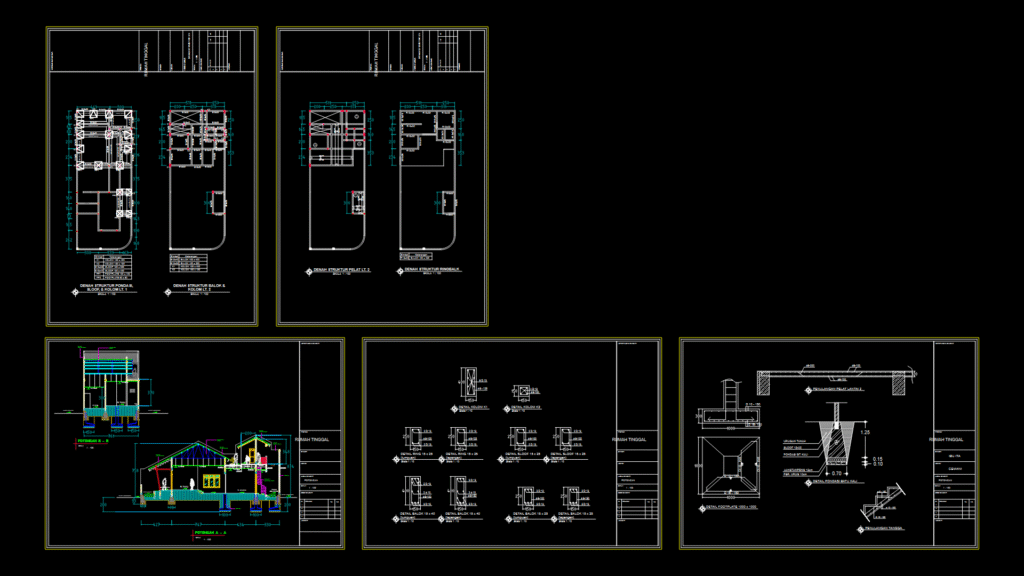

This comprehensive structural drawing set for a two-story residential building includes foundation plans, floor framing, and reinforcement details. The foundation system consists of footplates (100x100cm and 80x80cm) with specified steel reinforcement, stone masonry strip footings, and 15x25cm RC sloof beams. The structural frame features 15x40cm and 15x25cm RC beams with reinforced columns (K1: 15x40cm with 8Ø13mm bars, K2: 15x15cm with 4Ø13mm bars). Drawings include detailed cross-sections showing floor elevations from -1.08m (foundation) to +3.62m (roof), with a 12cm thick reinforced concrete slab for the second floor using Ø8-100mm mesh reinforcement. Specific reinforcement details show stirrup configurations (Ø8-100mm at support regions, Ø8-150mm at midspan) for all structural members. The structural system is designed to support light steel roof framing, with ringbalk beams (15x25cm) providing the upper tie system. The house layout includes common spaces like living room, dining room, and various functional areas served by a steel staircase with 21.5cm risers.
Residential Structural Drawing Set with rc Foundation and Frame Details
