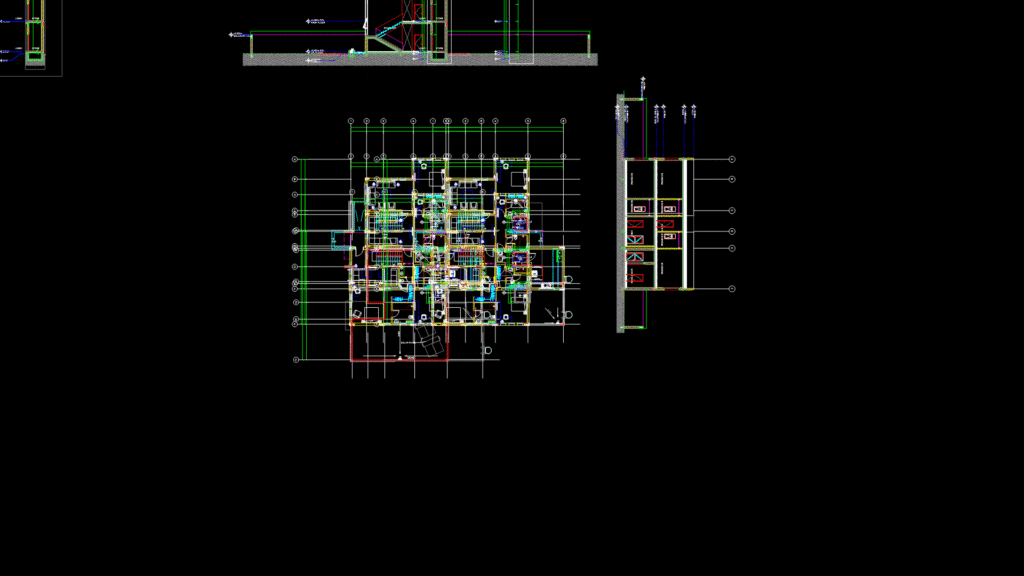

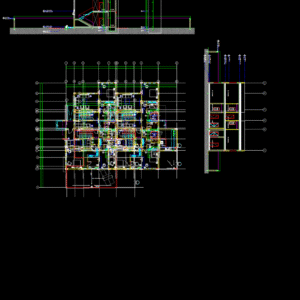

This drawing details the elevator installation for a residential villa in the Al Seyouh 16 development in Sharjah, UAE. The document presents floor plans at 1:50 scale showing the elevator configuration at ground floor (+0.300m F.F.L), first floor (+4.250m F.F.L), and roof level (+7.850m S.S.L), with a total shaft height extending to +9.100m T.O.P. The elevator shaft measures approximately 2.2m x 2.2m with floor finishes specified as 600x600mm porcelain tiles installed over a multilayer system consisting of glue (3-5mm), cementitious backer units with taped joints (3-5mm), dry-set mortar (3-5mm), and exterior plywood subfloor mounted on 50x50mm steel sections. The shaft walls include M12 HSA Hilti anchors at 300mm spacing. Notable design features include planned store rooms adjacent to the elevator at both ground (Room 017) and first floor (Room 106) levels. The drawing includes interface details between the elevator shaft and structural elements, with careful consideration for waterproofing at the roof level where solar panels are indicated nearby.
Residential Villa Elevator Detail Plans, Sections, and Mounting Specifications
