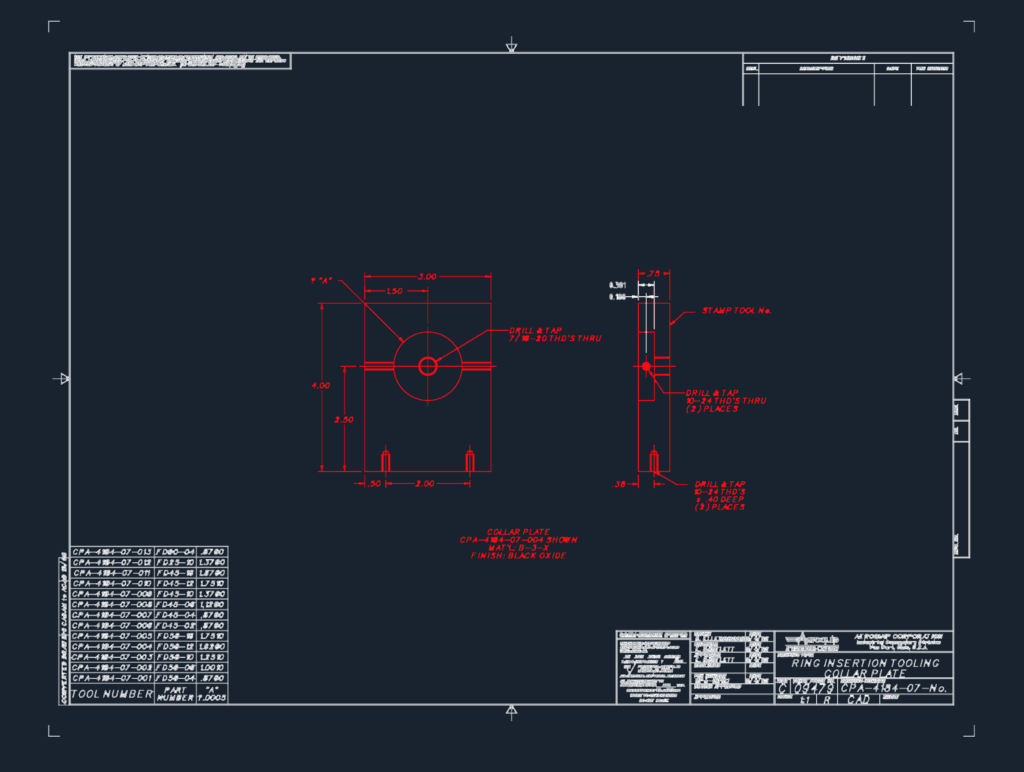

Collar plate details for Aeroquip ring insertion tooling, part CPA-4184-07. We’ve included front & side views with drill & tap callouts for 10-24 and 7/16-20 threads, material callouts for B-3-X, & finish info. There’s also a table for various tool numbers like FD45-02 thru FD56-16.
Ring Insertion Tooling Collar Plate Detail for Aeroquip
