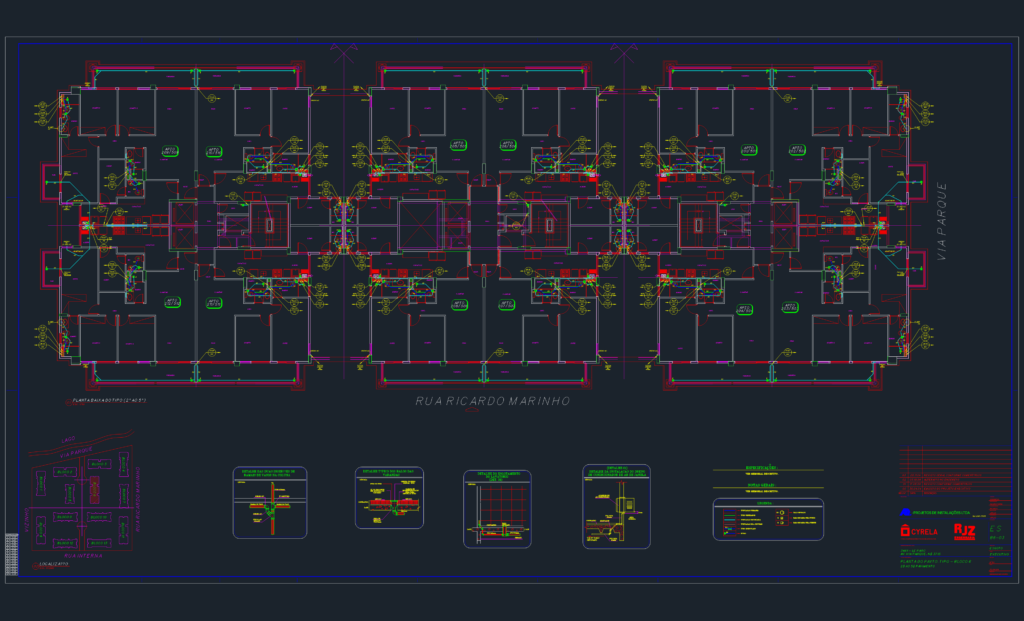

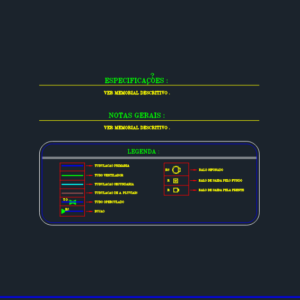

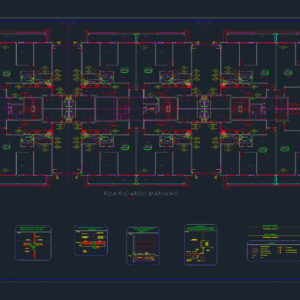

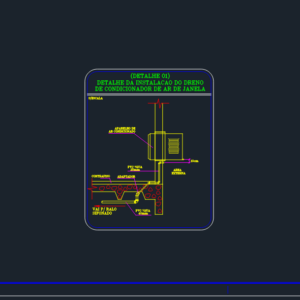

Floor plan for typical levels (2nd to 5th) showing the full sanitary drainage and AC condensate network. Includes specific details for balcony floor drains, sink waste connections, and the installation of window AC unit drains. Standard residential project specs from RJZ Cyrela, includes a location map & legend. Planta baixa do pavimento tipo com detalhes de esgoto e dreno de ar condicionado.
RJZ Cyrela Residential Typical Floor Sanitary and AC Drainage Layout
