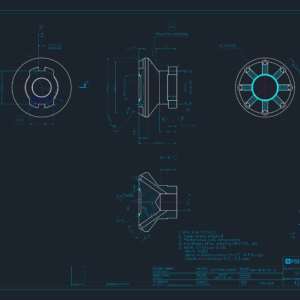

Manufacturing drawing for a Sil Group 0.33L cast iron component, typically used with Bottero machinery. This set includes a top-down view, cross-section A-A, and detailed elevations showing the 8 vents and 6 holes. It specifies GS900 cast iron material with a hardness of HRC 35-40 after welding.
Sil Group 0.33L Cast Iron Mold Component Mechanical Drawing
