Commercial-Service Building Site Layout in Block 43, Novi Beograd

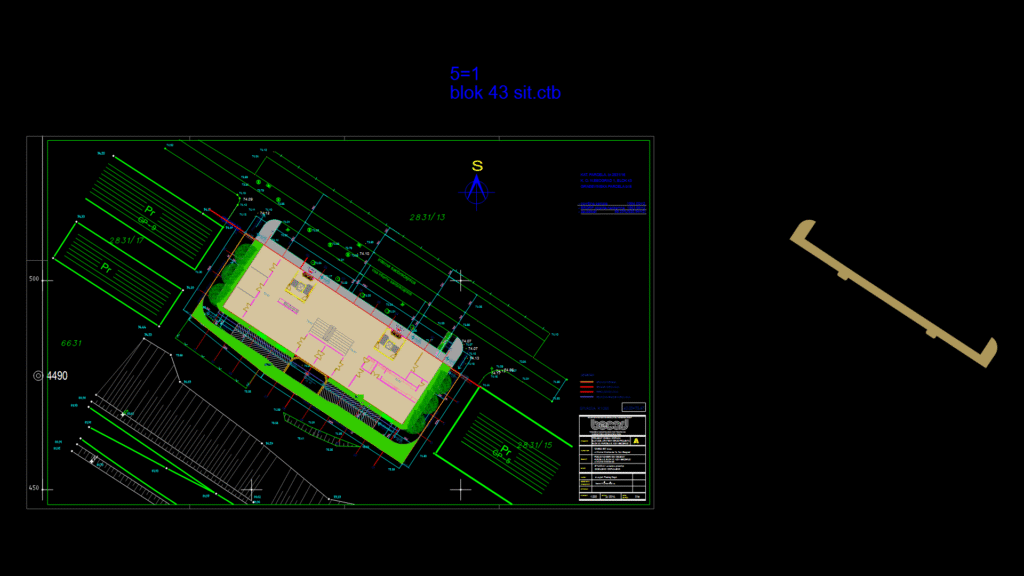

This site plan (situacija) depicts a ground floor layout with surrounding site context for a two-story commercial-service facility (Po+P+1) located on Parcel 6 in Block 43, Novi Beograd. This building occupies 920.54m² (59.23%) of the total 1554.00m² cadastral parcel 2831/16.
Key Features:
– Building has a basement, ground floor, and first floor configuration (Po+P+1)
– Total above-ground gross building area (BRGRP) of 1863.56m²
– Heated vehicular access ramps with 13.8% slope gradient for basement garage access
– Two designated building entrances (ULAZ 1 and ULAZ 2)
– Vehicle circulation patterns clearly marked with directional arrows
– Site boundary defined with 2m high perimeter fencing (80cm solid base + 120cm transparent upper)
The drawing shows property boundaries, building lines, landscaped areas, and topographic elevations. The site features separate vehicle entry and exit points with carefully planned internal circulation. Elevation points throughout (ranging from approximately 73.76m to 76.41m) indicate site grading, with the ground floor reference elevation set at ±0.00=75.47m.
The building’s orientation and placement optimize the site’s irregular geometry while maintaining required setbacks from property lines. Landscaped areas buffer the structure, with designated areas for waste containers (kontejneri) and utilities integration.
