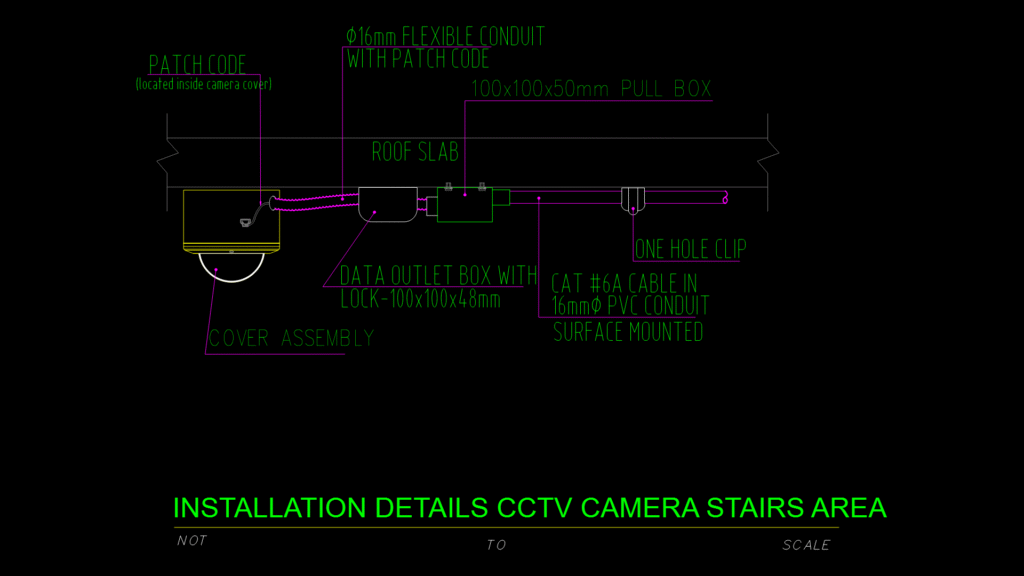

This detailed section drawing illustrates the installation configuration for a CCTV camera system in stairwell areas. The assembly shows a dome-style security camera with protective cover assembly mounted below a roof slab. The drawing details the cable pathway using 16mmØ PVC conduit surface-mounted with one-hole clips for secure attachment. Data transmission utilizes CAT 6A cabling routed through a 100x100x50mm pull box and connects to a lockable data outlet box (100x100x48mm) via 16mm flexible conduit with patch code. The design incorporates practical maintenance considerations by positioning the patch code inside the camera cover for service access while maintaining security. This typical detail would be implemented at stairwells throughout the building to provide consistent surveillance coverage of vertical circulation areas as part of an integrated security system.
Stairwell CCTV Camera Installation Detail Section with Conduit Routing
