Structural Project with 45cm Raft Foundation and Reinforcement Details

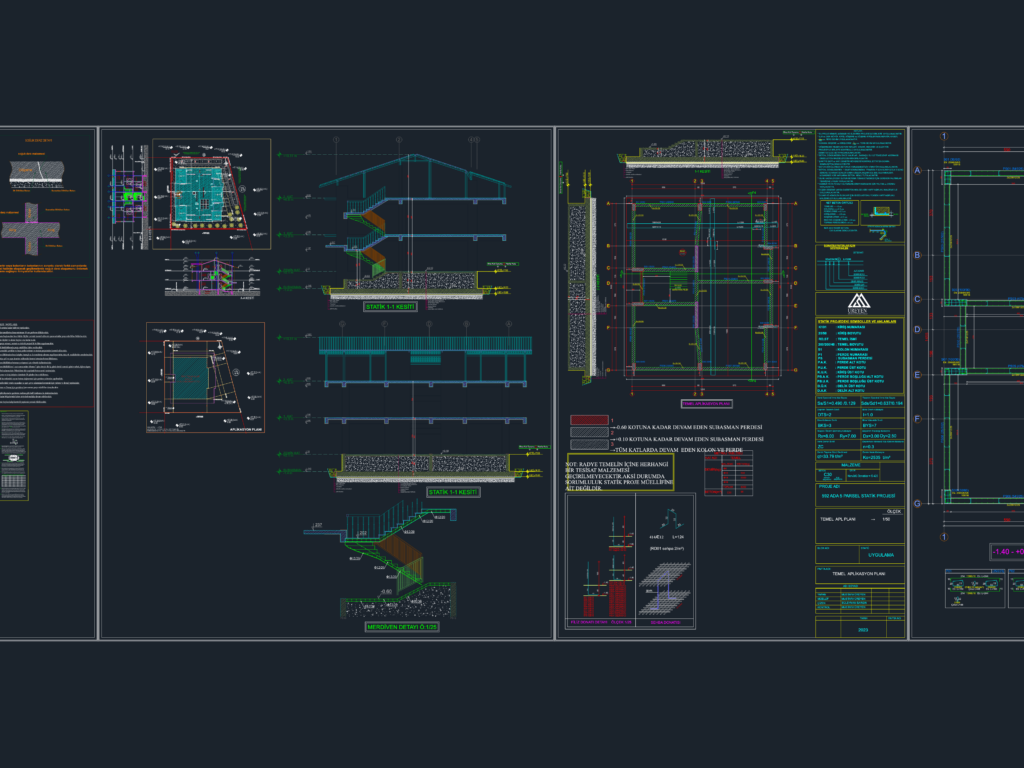

Structural CAD drawings showing 45cm raft foundation plans, cross-sections, stair details, and reinforcement schedules.

structural layout for building project using C30 concrete and 45cm thk. radye temel. includes sections, subasman details, and floor reinforcement plans with Ø8 to Ø16 rebar.

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Other
Materials
Concrete, Steel
Units
Metric
Area
250 – 499 m² (2691.0 – 5371.2 ft²)
Uploaded by
Daniel
Category
Construction Details & Systems
Published
May 21, 2026
Price $3.33
or

or get unlimited access from $7/mo

Tags

DWG engineering FOUNDATION structural
