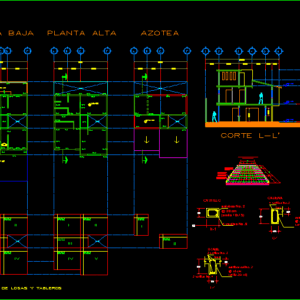

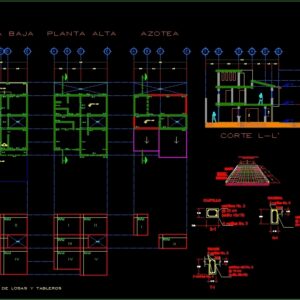

Stuctural Housing DWG Full Project for AutoCAD

PROJECT HOUSING

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

access, reinforced slab with rods bayonets sticks, canes with no vars. cm alternating with bayonets in high bed both directions, not bayonets. cm alternated with the vars run both directions, no. in bed under both directions, castle, rods not., stirrups no. cm, stirrups no. cm, rods not., castle, rings of, stirrups of no. cm, rods not., slab, chain, stirrups of no. cm, rods not., chain, slab, street chicaras, street and streets, street tlaxomultecas, street tejoquines, n.p.t., cut, empty, low level, top floor, rooftop, empty, empty, of the no., cm., of the no., cm., of the no., cm., of the no., cm., of the no., cm., of the no., cm., of the no., cm., of the no., cm., of the no., cm., of the no., cm., iii, iii, stirrups of no. cm, rods not., lock, slab, stirrups of no. cm, rods not., slab, chain, castle, rods not., stirrups no. cm, rods not., reinforced slab with rods bayonets sticks, canes with no vars. cm alternating with bayonets in high bed both directions, not bayonets. cm alternated with the vars run both directions, no. in bed under both directions, reinforcement of slabs

Raw text data extracted from CAD file:

ACCESO 1 1 1 2.70 2.70 0.90 1.50 15.00 8.00 8.00 8.00 2.00 3.00 2.00 2.00 1.00 1.00 11.00 2.10 1.20 2.00 2.00 1.00 3.00 2.00 4.00 2.00 2.00 4.00 1/4 1/2 L 1/4 1/4 1/2 1/4 ARMADO DE LOSA CON VARILLAS CORRIDAS, BAYONETAS Y BASTONES Bastones con vars del No. 3 @ 20 cm alternados con los bayonetas en lecho alto @ 15 cm, ambos sentidos Bayonetas del No. 3 @ 20 cm alternados con las vars corridas @ 15 cm, ambos sentidos varillas corridas del No. 3 en lecho bajo @ 20 cm ambos sentidos L CASTILLO 4 varillas No. 3 estribos No. 2 @ 18-20-18 cm (anillo 10×15) k-1 0.20 0.15 estribos No. 2 @ 15 cm 6 varillas No. 4 5 5 k-2 CASTILLO anillos de 25 x 10 cm 5 5 estribos del No. 2 @ 20 cm (anillo 25×10) T-1 5 4 varillas No. 3 losa CADENA estribos del No. 2 @ 15 cm (anillo 25×10) 5 5 varillas No. 4 CADENA T-2 5 losa 5 \A1;0.20 \A1;0.15 \A1;0.15 \A1;0.30 \A1;0.30 \A1;0.10 \A1;0.15 \A1;0.15 \A1;0.30 \A1;0.10 \A1;0.15 \A1;0.30 \A1;0.10 \A1;0.30 \A1;0.10 \A1;0.15 \A1;0.20 \A1;0.15 CALLE CHICARAS CALLE EUDEVAS CALLE TLAXOMULTECAS CALLE TEJOQUINES 8 m. 17.4 m. 7.80 4.00 2.00 2.00 2.00 3.00 5 5 5 5 N.P.T. + 0.15 N.P.T. + 2.85 N.P.T. + 5.55 1 2 3 4 5 6 5 5 5 5 5 5 5 5 5 CORTE L-L’ N.P.T.+ 0.15 A B C D E 1 2 4 6 7 5 5 5 5 A B C E 5 vacio A B C E 5 PLANTA BAJA PLANTA ALTA AZOTEA N.P.T.+ 2.85 N.P.T.+ 0.15 N.P.T.± 0.00 N.P.T.± 0.00 L’ L N.P.T.+ 5.55 3 5 5 5 5 5 5 5 5 vacio vacio vacio vacio L’ L L’ L K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 T-1 T-1 T-1 T-1 T-1 T-1 T-1 T-1 T-1 C-1 C-1 C-1 C-1 C-1 C-1 C-1 C-1 C-1 C-1 C-1 C-1 C-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1p K-1p K-1p K-1p K-1p K-1p K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1 K-1p vacio vacio 2 4 6 3 5 Del no. 3 @ 10 cm. Del no. 3 @ 10 cm. Del no. 3 @ 10 cm. Del no. 3 @ 10 cm. Del no. 3 @ 10 cm. Del no. 3 @ 10 cm. Del no. 3 @ 15 cm. Del no. 3 @ 15 cm. Del no. 3 @ 15 cm. Del no. 3 @ 15 cm. II III IV I II III IV V I II estribos del No. 2 @ 10 cm (anillo 25×10) 0.15 3 varillas No. 3 TRABE T-1 0.30 losa 0.10 0.30 0.10 estribos del No. 2 @ 20 cm (anillo 25×10) C-1 0.15 4 varillas No. 3 losa CADENA CASTILLO 4 varillas No. 3 estribos No. 2 @ 20 cm (anillo 10×15) k-1 0.20 0.15 2 varillas No. 4 1/4 1/2 L 1/4 1/4 1/2 1/4 ARMADO DE LOSA CON VARILLAS CORRIDAS, BAYONETAS Y BASTONES Bastones con vars del No. 3 @ 20 cm alternados con los bayonetas en lecho alto @ 10 cm, ambos sentidos Bayonetas del No. 3 @ 20 cm alternados con las vars corridas @ 10 cm, ambos sentidos varillas corridas del No. 3 en lecho bajo @ 20 cm ambos sentidos L 5 5 5 5 5 5 ARMADO DE LOSAS Y TABLEROS
