Take Home DWG Detail for AutoCAD

DETAIL TAKE HOME; INCLUDE PIECES Y METROSOF MATERIAL

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

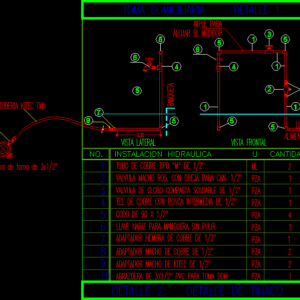

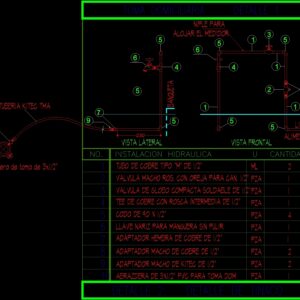

Hydraulic installation, Elbow, do not., Male throttle valve. With ear for can., Solderable compact balloon valve, Pza, quantity, Uncoated hose nose hose, Copper tee with intermediate thread of, Home taking detail, Male copper adapter, Male kitec adapter, Copper tube type, Nipple for, House the meter, Pza, Female copper adapter, Pza, front view, side view, line of, feeding, Pza, sidewalk, Clamp, Detail of tinaco, Pvc cuddle for sunbathing, Pza, Kitec tma tub

Raw text data extracted from CAD file:

5 2 5 1 1 6 5 INSTALACION HIDRAULICA U CODO DE 90 X 1/2″ 5 2 3 4 6 NO. VALVULA MACHO ROS. CON OREJA PARA CAN. 1/2″ VALVULA DE GLOBO COMPACTA SOLDABLE DE 1/2″ 4 1 PZA PZA CANTIDAD 7 LLAVE NARIZ PARA MANGUERA SIN PULIR 9 TEE DE COBRE CON ROSCA INTERMEDIA DE 1/2″ 1 2 1 TOMA DOMICILIARIA DETALLE 1 4 7 \A1;0.30 9 ADAPTADOR MACHO DE COBRE DE 1/2″ 1 2 8 ADAPTADOR MACHO DE KITEC DE 1/2″ 3 5 1 TUBO DE COBRE TIPO “M” DE 1/2″ 2 ML NIPLE PARA ALOJAR EL MEDIDOR 6 1 PZA PZA ADAPTADOR HEMBRA DE COBRE DE 1/2″ 1 PZA 8 VISTA FRONTAL VISTA LATERAL 4 5 5 1 LINEA DE ALIMENTACION PZA PZA PZA 5 BANQUETA 9 abrazadera de toma de 3×1/2″ DETALLE 2: DETALLE DE TINACO 10 1 ABRAZDERA DE 3X1/2″ PVC PARA TOMA DOM PZA TUBERIA KITEC TMA 10
