Tanquilla Of Embedment – Sewer DWG Detail for AutoCAD

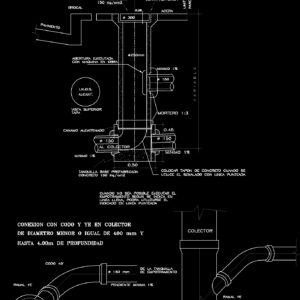

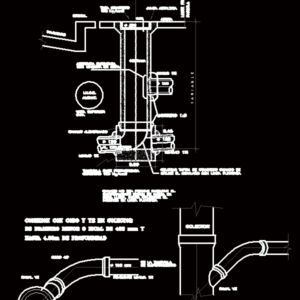

Detail tanquilla typical of embedment (cachimbo) discharge; collection systems used in wastewater.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Variable distance, According to wide sidewalk, Asphalt seal, Type inlay type, minimum, mortar, Of embedment, Of the tanquilla, elbow, manifold, Branch ye, elevation, Minimum slope, Up to depth, Connection with elbow and in manifold, Of smaller diameter equal to mm, Prefabricated base seat, concrete, As indicated in, Line may be used, Indicated in dotted line, When it is not possible to execute the, Alcatraz, minimum, To the collector, top view, Alcant., I.n.o.s., top, Opening performed, With machine on site, curb, pavement, Concrete cap, Place concrete plug when, plant, Branch ye, manifold, Use the dotted line, minimum, plot, sidewalk, Front limit

Raw text data extracted from CAD file:

\A1; \A1; \A1; \A1; DISTANCIA VARIABLE SEGUN ANCHO ACERA JUNTA ASFALTICA TANQUILLA DE EMPOTRAMIENTO TIPO d 150 MINIMO 1% MORTERO 1:3 d 150 DE EMPOTRAMIENTO DE LA TANQUILLA CODO 45° COLECTOR RAMAL YE ELEVACION ESC.= 1 : 10 PENDIENTE MINIMA 1% d 150 mm HASTA 4.00m DE PROFUNDIDAD CONEXION CON CODO Y YE EN COLECTOR DE DIAMETRO MENOR O IGUAL DE 400 mm Y TANQUILLA BASE PREFABRICADA CONCRETO 150 Kg/cm2 EMPOTRAMIENTO SEGUN SE INDICA EN LINEA LLENA, PODRA UTILIZARSE EL INDICADO EN LINEA PUNTEADA CUANDO NO SEA POSIBLE EJECUTAR EL CANAMO ALCATRINADO MINIMO 1% 0.50 d 150 AL COLECTOR VISTA SUPERIOR ALCANT. I.N.O.S. TAPA ABERTURA EJECUTADA CON MAQUINA EN OBRA d250mm BROCAL PAVIMENTO 0.08 d 300 150 Kg/cm2 TAPA CONCRETO ESC.= 1 : 10 COLOCAR TAPON DE CONCRETO CUANDO SE PLANTA ESC.= 1 : 10 RAMAL YE COLECTOR UTILICE EL SENALADO CON LINEA PUNTEADA 0.45 MINIMO 1% V A R I A B L E PARCELA ACERA LIMITE FRENTE
