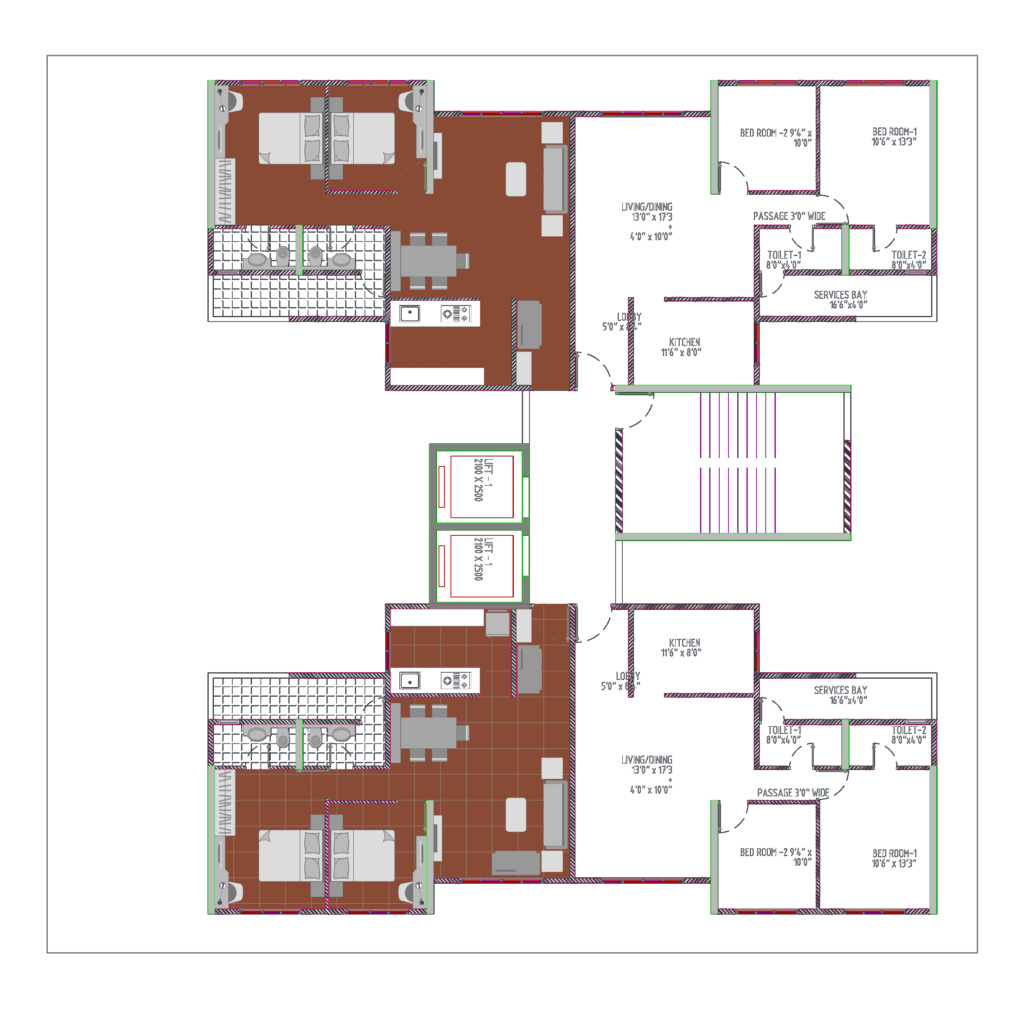

Typical floor plan for two mirror-image 2BHK apartments. Living/dining area is 13’0″ x 17’3″ plus a 4’0″ x 10’0″ alcove. Kitchen dimensions are 11’6″ x 8’0″. Includes Bedroom-1 (10’6″ x 13’3″) and Bedroom-2 (9’4″ x 10’0″). Each unit has two 8’x4′ toilets and a 16’6″ x 4’0″ services bay. Central core features twin 2100 x 2500 lifts and a common staircase.All dimensions shown in imperial units.
Twin 2BHK Residential Unit Floor Plan with Services Bay
