Two-Level Cottage On The Beach With Parking 2D DWG Design Plan for AutoCAD

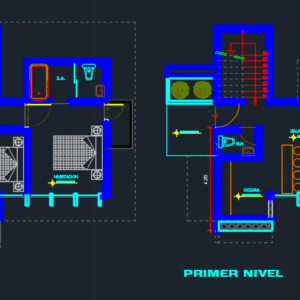

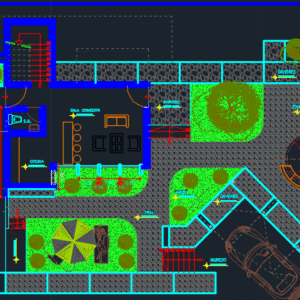

The project is a cottage; This is the design of a two-level cottage on the beach, has parking, living room, kitchen, two bedrooms and bathrooms. This design includes elevation and floor plans.The important feature of the project is that the stone is used; in all its possibilities both structural (gabions) flats; walls; planters; etc. using wood as a material to complement the stone; looking for a contrast to the environment project implementation; which it has the characteristics of a hilly countryside

Language Spanish
Drawing Type Plan
Category
Additional Screenshots



File Type dwg, zip
Materials Concrete, Steel, Wood
Measurement Units Metric
Footprint Area 150 - 249 m² (1614.6 - 2680.2 ft²)
Building Features Car Parking Lot
Tags , , , , , , , , , , , , , , , , , , , , , , , ,
