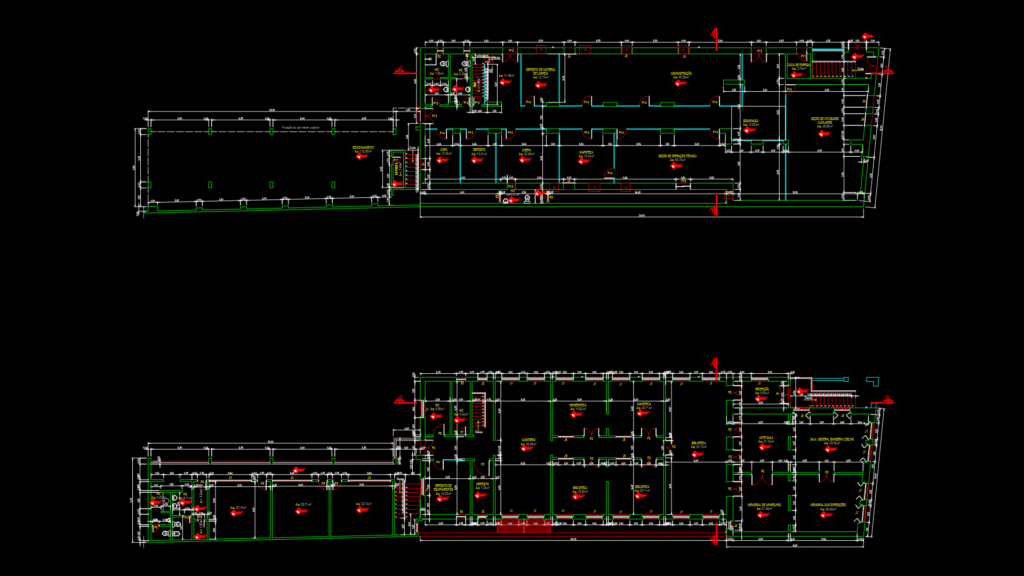

Detailed floor plans for the First Brazilian Boundary Commission headquarters renovation project at Av. Governador José Malcher, n°349. This drawing shows both ground floor and upper floor layouts at 1:75 scale with complete room identification and area calculations in square meters.
Key Spaces:
– Ground floor features: administration section (62.30m²), technical operations (60.70m²), auxiliary activities (58.60m²), storage areas, restrooms, and parking (122.68m²)
– Upper floor includes: library spaces (53.75m², 20.11m², 19.62m²), auditorium (48.94m²), memorial rooms, map collection areas, and support facilities
The plans include comprehensive door and window schedules with detailed dimensions for 18 door types (P1-P18) and 9 window types (J1-J9), plus 3 transom window types (B1-B3). Building circulation features central staircases with directional indicators. Floor level variations are noted with elevation markers (+0.02, +2.22, etc.). Project prepared by architects Myrian Leal Maia (CREA/PA 7376-D) and Simone Silene D. Seabra (CREA/PA 7635-D) in July 2009.
