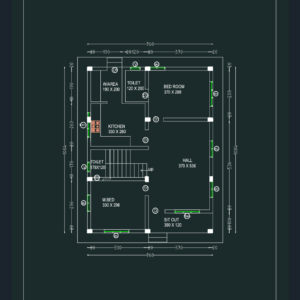

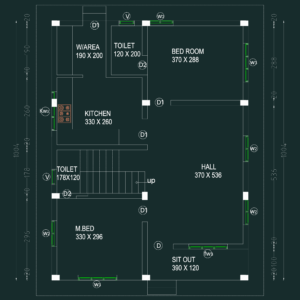

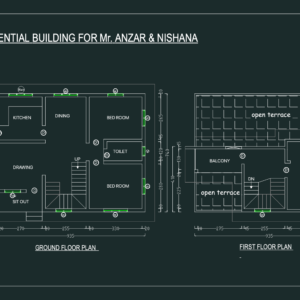

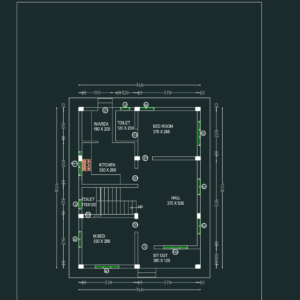

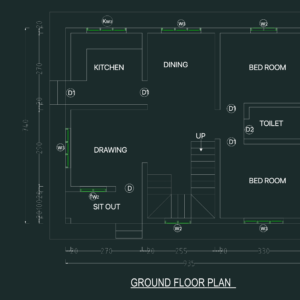

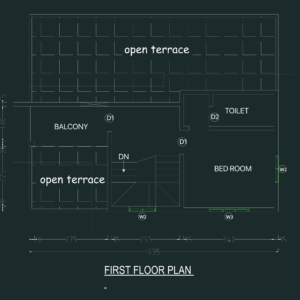

Floor plans for a two-story residential building, including ground and first floor layouts. The ground floor footprunt measures approximately 7.6m x 10.0m and features a sit-out, large hall, kitchen with work area, and multiple bedrooms. Structural walls are noted with 20cm external and 10cm internal thicknesses. On first floor, the design incorporates a bedroom, toilet, and an expansive open terrace section. All openings are tagged for schedules, including W2 windows and D1 doors. Vertical transit is shown via a central staircase with ‘up’ and ‘dn’ indicators.
Two-Story Residential Building Floor Plans with Open Terrace
