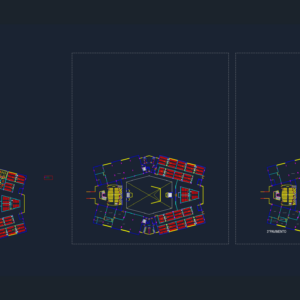

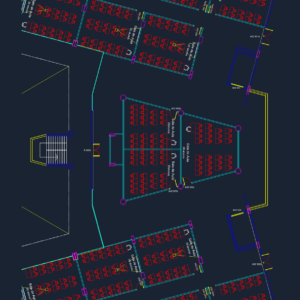

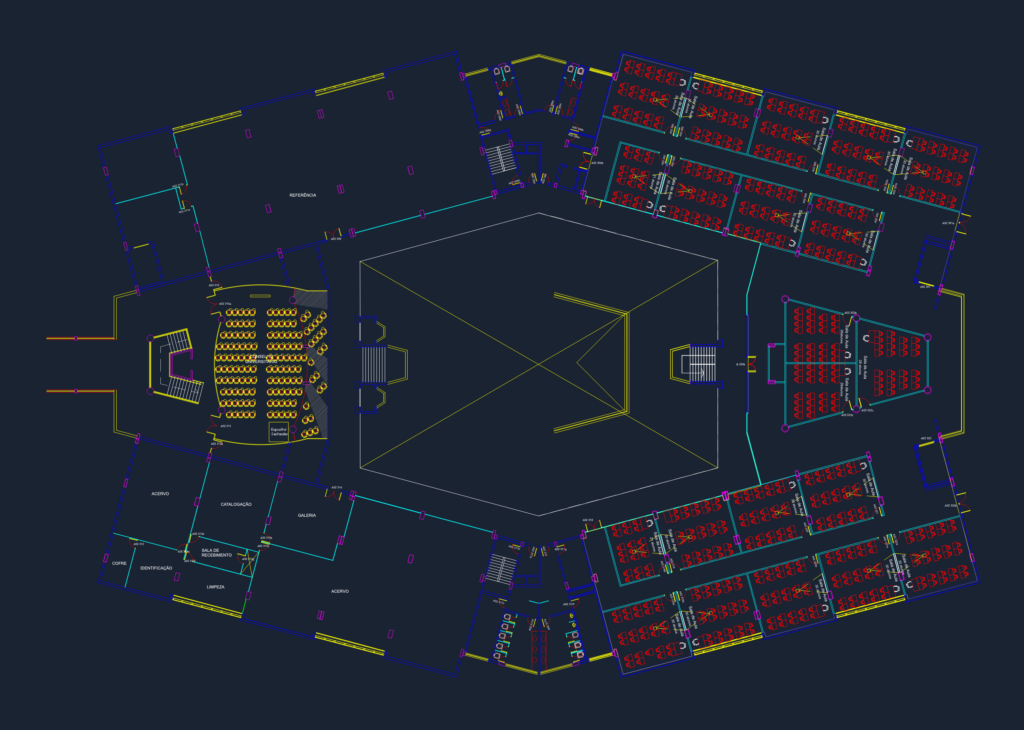

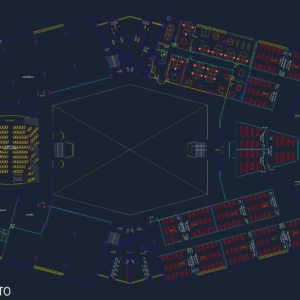

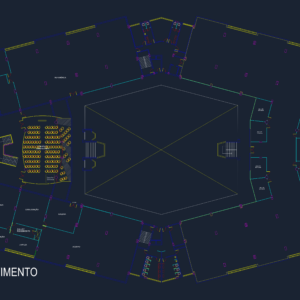

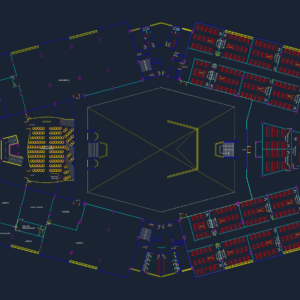

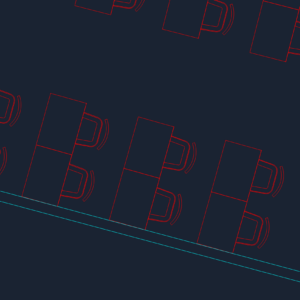

3rd floor layout for a university library building, including detailed furniture blocks for all spaces. You’ll find several classrooms (Sala de Aula) with seating for 21 to 30 students, plus a central council room. Administrative areas like cataloging, processing, and archives are all mapped out with specific room dimensions in sq.m. The plan also features a large central void with stairs and elevator access points. Spaces included: – Classrooms and study areas with desks. – Admin wing: leadership, meetings, and acquisitions offices. – Support zones: bathrooms, pantry, and storage. All labels are in Portuguese.
University Library 3rd Floor Plan with Classroom and Administrative Layouts
