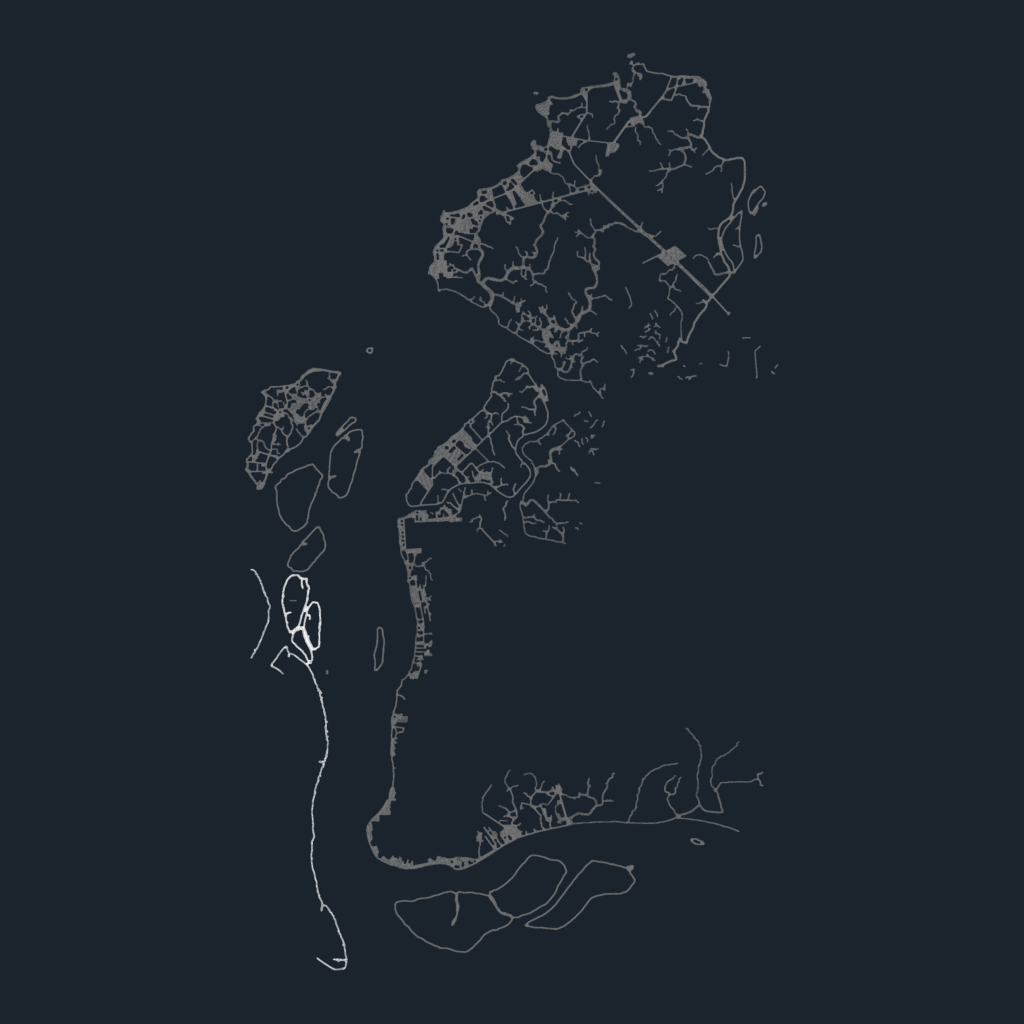

Site plan showing the regional boundaries of Urubuoca and Jararaca areas. Coastal outlines and existing road networks are mapped in detail. Contour lines are separated on dedicated layers for 5m, 10m and 20m intervals (Cota_5, Cota_10, Curva_20). Drawing area measures approximately 30.8km x 53.2km based on the metric units. Submission-ready data modified for municipal prefeitura standards. Vector content includes over 6,000 entities, primarily lwpolylines and points for toponimia. Typ. use cases include urban zoning or environmental mapping projects. Master planning for the Ilha das Onças region is the primary application.
Urubuoca and Ilha das Onças regional site plan
