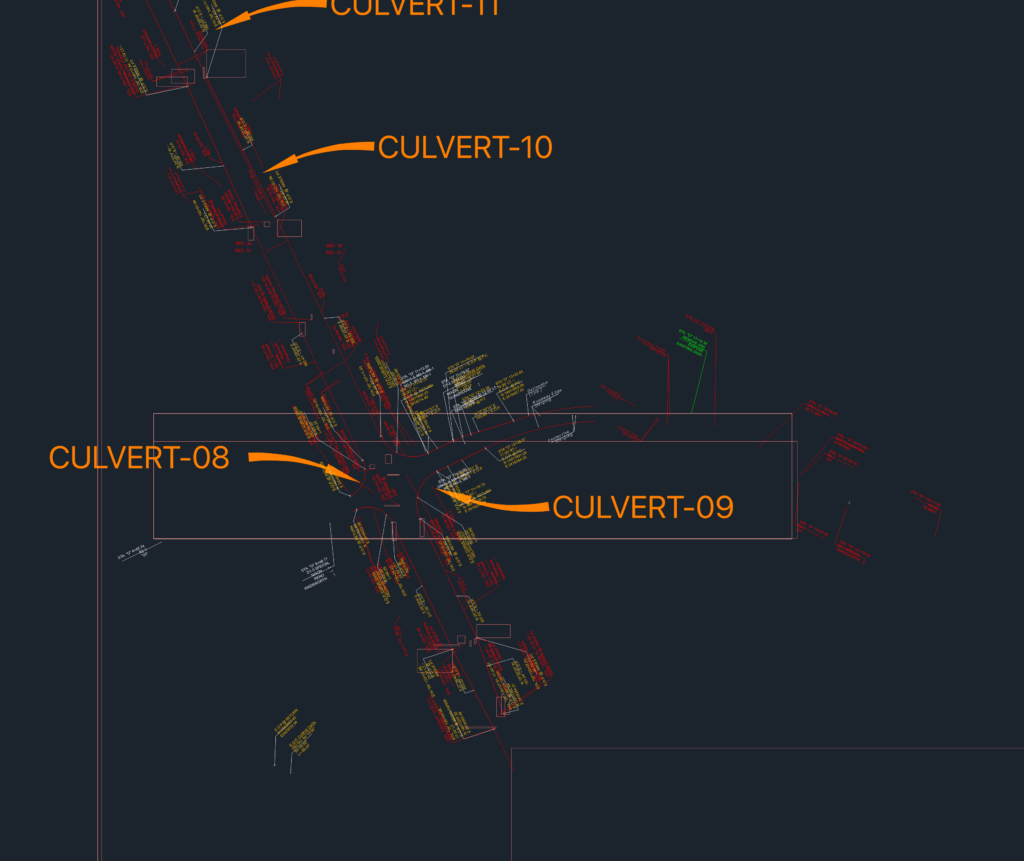

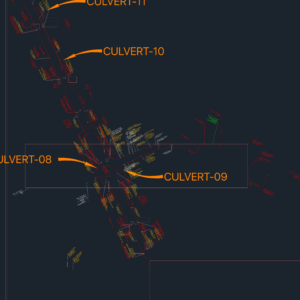

Wadsworth Bypass Road striping and drainage layout. Features Culvert 01 through 11 locations with stationing. Includes existing geometry for SR 427, SR 447, and Olinghouse Road. Match lines cover STA 19+00 to 142+00. Specific notes for delineators, object markers, and signage included. Scale is 1 inch to 100 feet. Coordination with existing R-O-W lines. Suits public infrastructure and civil planning projects.
Wadsworth Bypass striping DWG
