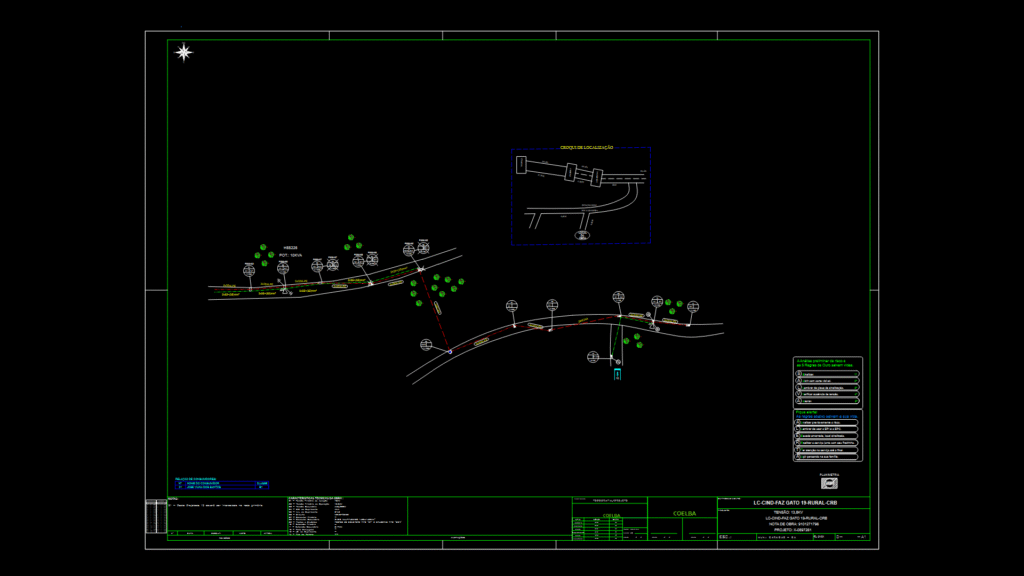

Rural electrical distribution line extension plan for the Fazenda Gato 19 area in Caraibas, BA, Brazil. This drawing shows a 13.8kV primary distribution line (0.17km extension) with a 10kVA transformer installation.
Key Components:
– Monofásico (single-phase) 13.8kV/15kV primary system with 440/220V secondary voltage
– Concrete utility poles (type DT) with CCR-type crossarms
– Primary conductors: 2x35mm² XLPE cables
– Secondary conductors: Multiplexed 1×25+1x25mm² cables
– 10kVA transformer installation (H88226)
– Grounding points and lightning protection
– Multiple utility poles numbered P396465-P396469 with various configurations (N1, N3, N4, N3-3)
The plan includes a location sketch (croqui de localização) showing the access routes from highways BA-001, with specific distances to landmarks. The project serves customer Jose Viana dos Santos (Class B1) and includes safety protocols for installation and maintenance.
