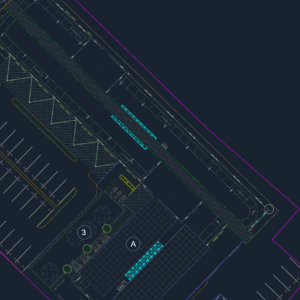

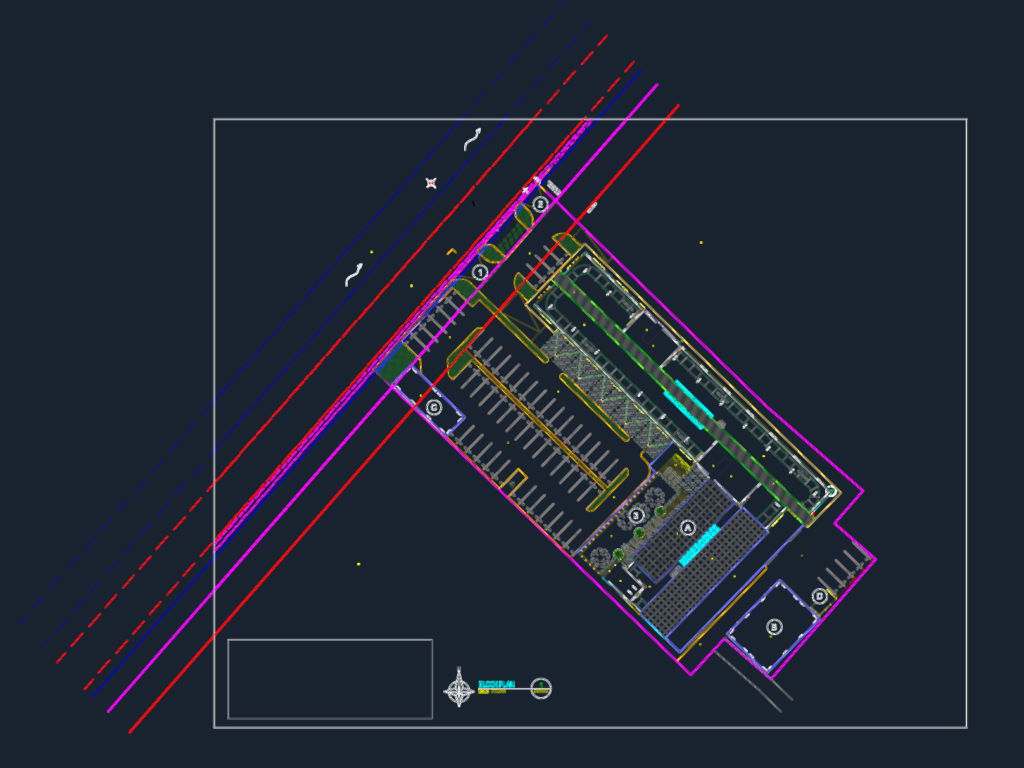

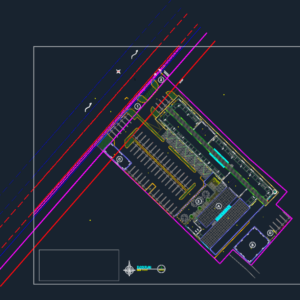

This drawing is for a apartment complex block plan at 1:200 scale. It shows the main building footprint, extensive parking areas, and dedicated utility blocks for the power house and transformer. Includes perimeter details like the river boundary and neighboring market stalls. This could be useful in residential site planning or urban development projects.
Apartment Complex Block Plan DWG including Parking and Utility Building Layouts
