Typical Installation Detail for Belt Conveyor Fire Suppression

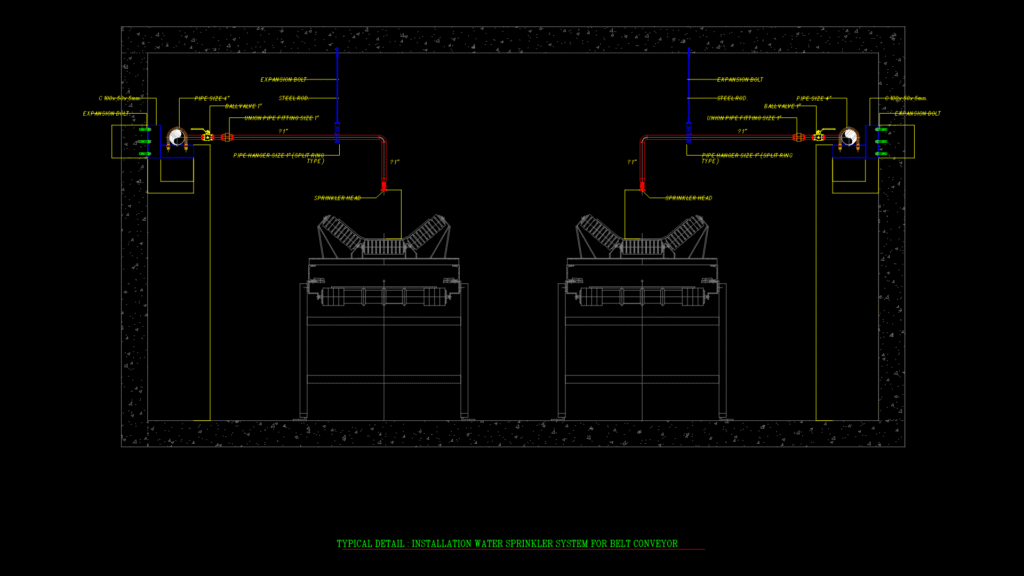

This engineering detail drawing illustrates a comprehensive water sprinkler system installation specifically designed for belt conveyors in industrial settings. The system features symmetrical sprinkler head placements on both sides of the conveyor with strategic positioning to provide optimal fire suppression coverage.
Key Components:
– Sprinkler heads positioned approximately 91″ from the main distribution piping
– 1″ diameter steel pipe for main horizontal runs
– Ball valves for isolation and maintenance purposes
– Union pipe fittings (size 1″) for serviceability
– Pipe hangers with side support ring type fixtures for secure mounting
– Expansion joints to accommodate thermal movement and vibration
The installation incorporates standard pipe sizes with a combination of vertical and horizontal runs. The drawing shows careful attention to pipe support and mounting details, ensuring stability during operation. Expansion bolts are specified at key locations to prevent damage from thermal expansion/contraction cycles.
This fire protection system follows industrial fire safety standards for conveyor systems, with particular attention to proper spacing of sprinkler heads to ensure complete coverage of potential fire zones along the conveyor belt. The symmetrical design allows for even distribution of water in case of fire, protecting both the conveyor structure and transported materials.
