Commercial Interior Renovation Plan for 40sqm Retail Store

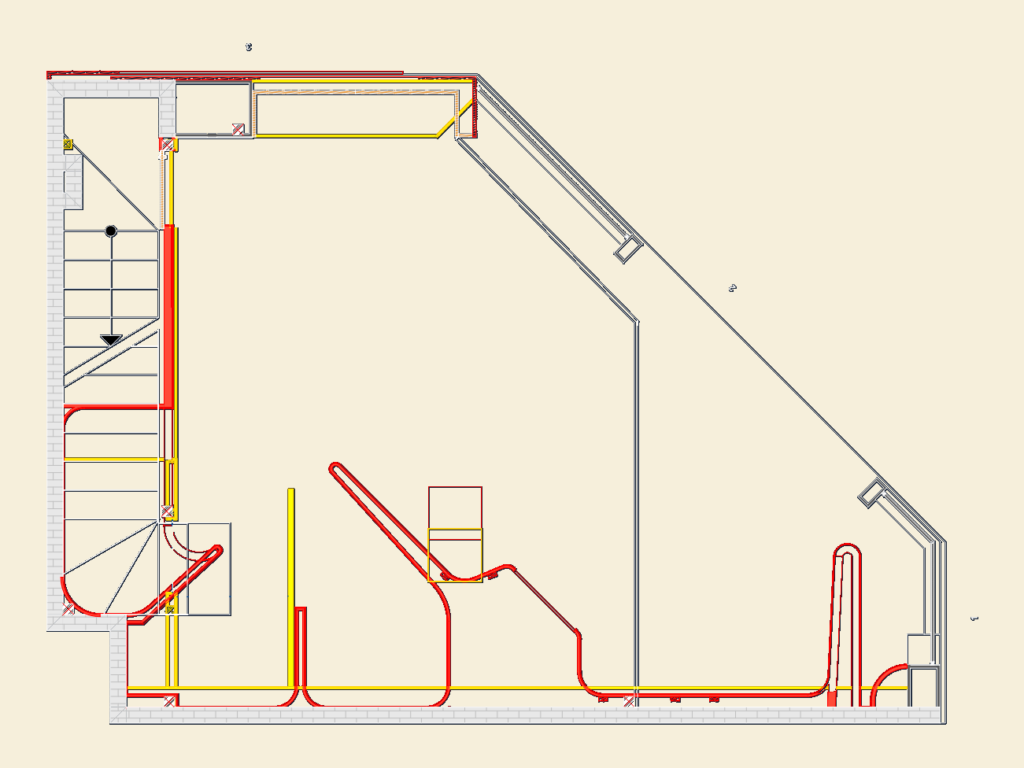

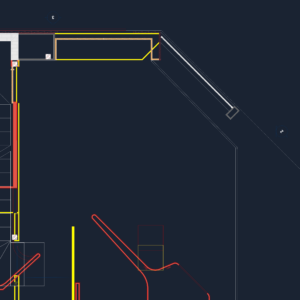

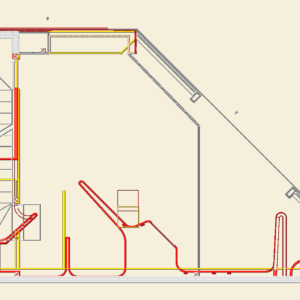

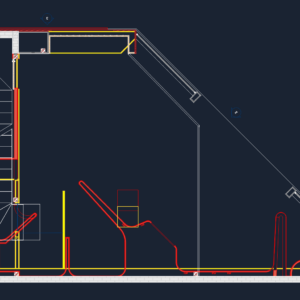

Renovation layout for a small 40m² retail shop, specifically a kids’ clothing boutique. Shows new drywall partitions, what needs to be demolished and the updated floor plan. Notes included for the vinyl flooring swap and reinforcing the display supports. Also covers HVAC changes with the current and new air diffuser spots. Drawn at 1:25 scale.Planta de reforma para loja de varejo.

FREE

File Details

File Type
DWG
Type
Plan
Language
Portuguese
Materials
Masonry, Plastic, Moulding, Steel
Units
Metric
Area
10 – 49 m² (107.6 – 527.4 ft²)
Features
A/C
Uploaded by
Daniel
Downloads
1 downloads
Category
Commercial, Retail
Published
May 28, 2026
