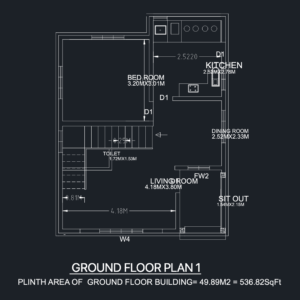

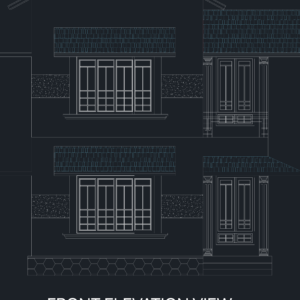

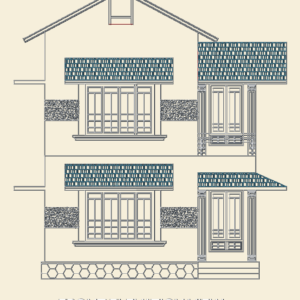

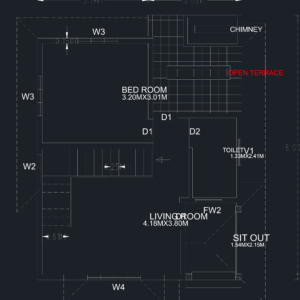

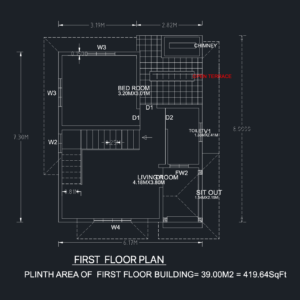

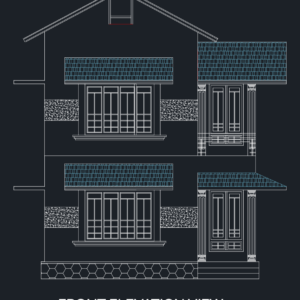

Residential house layout featuring ground & first floor plans plus a detailed front elevation. GF includes living, dining, kitchen, one bedroom, & a sit out, while the FF adds another bedroom, toilet, and an open terrace with a chimney detail.. Total plinth area is around 537 sq ft for the ground floor & 420 sq ft for the first. Front elevation shows a traditional look with tiled roofs, decorative pillars, & window sunshades. Dimensions are mostly in metric but sq ft totals are provided for reference.Incl. staircase details, window markers, door types, and more
Compact Two Story Residential House Floor Plans and Front Elevation
