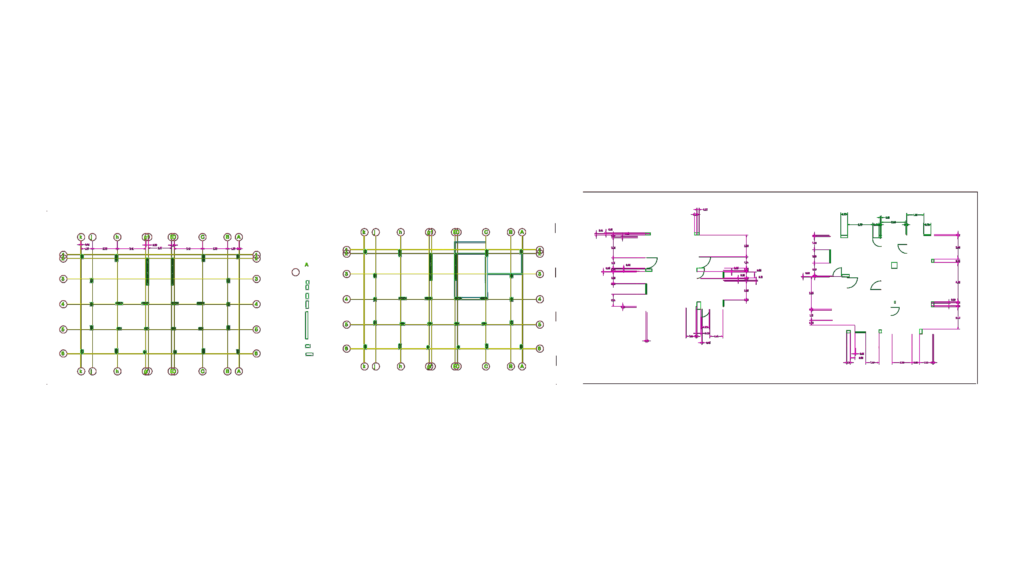

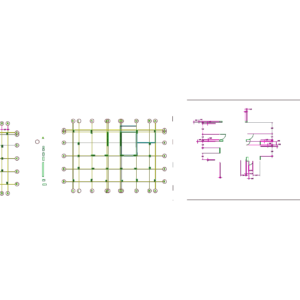

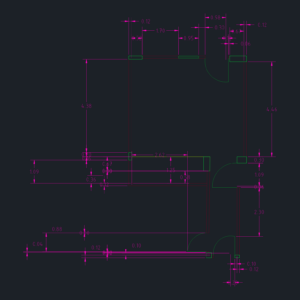

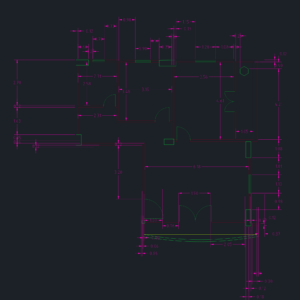

Residential first floor plan featuring a full structural column grid and detailed architectural layout. Shows the grid lines from A to K and 1 to 6 for the structural base. Detailed dimensions throughout for room sizes, wall thickness, & openings. Batrhoom layout is included, along with door swings and windows. Everything is drawn in meters.Standard 12cm and 10cm wall details. Just a solid base for a housing project, incl. all the usual labels and dims.
Detailed Residential First Floor Architectural and Structural Layout
