Dining Room, Restaurant, Hotel, Eatery 2D DWG Plan for AutoCAD

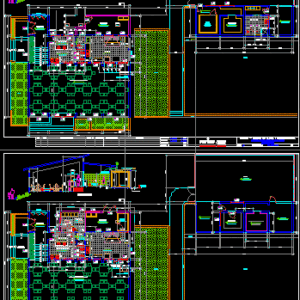

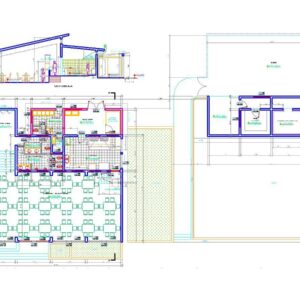

Plan, section and elevation view of restaurant with roofing. The floor plan has following areas – kitchen, dining room with 17 – six seater dining table, rest room, shower, reception, locker room, principal entry, refrigerator, ware house, patio, staircase. The center is covered with landscaping and gardening. Total foot print area of the plan is approximately 1050 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | 1000 - 2499 m² (10763.9 - 26899.0 ft²) |
| Building Features | A/C, Garage, Deck / Patio, Garden / Park |
| Tags | accommodation, autocad, dining, Dining room, DWG, hostel, Hotel, Restaurant, room, spa, table |
