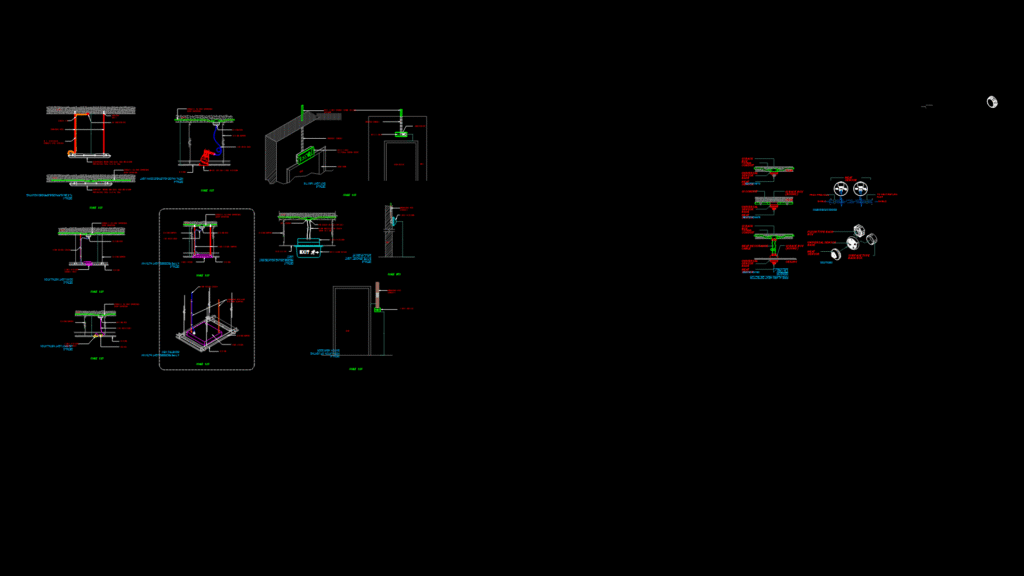

This comprehensive detail drawing depicts various installation configurations for fire detection components in commercial buildings. This drawing shows multiple mounting details for heat sensors, smoke sensors, and universal sensor bases connected to fire alarm systems. Key installation details include ceiling-mounted sensors with fire-rated cable connections, junction box placements, and conduit routing specifications. The drawing provides precise mounting heights (typically 2200mm above floor level) and illustrates the integration with false ceiling systems. Various lighting fixture installations are also detailed, including TL-5 28W fixtures, LED spotlights, and emergency exit signage with 1x8W T16 lamps. The drawing emphasizes fire safety compliance through proper shielding requirements and fire-rated cable specifications. Particular attention is given to the wiring diagram showing the sensor connection to the fire alarm control panel and continuation to additional devices, ensuring proper circuit integrity for the fire detection network.
Fire Detection installation Detail Drawing: Heat and Smoke Sensor Mounting
