Health Plan DWG Plan for AutoCAD

Health Plan DWG Plan for AutoCAD

This plane contains the draft room with home health plan and symbolism

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

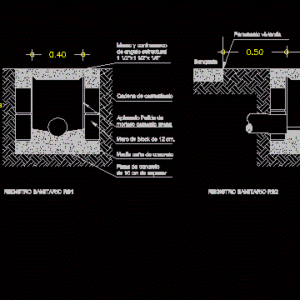

Frame frame, Closing chain, Polished mortar, Block wall of cm., Half cane concrete, Concrete firm cm thick, Pipe ads, sanitary registration, Housing, sanitary registration, pending, variable, sanitary registration, Concrete firm cm thick, Half cane concrete, Block wall of cm., Polished mortar, Closing chain, Frame frame, sidewalk, pending, Housing

Raw text data extracted from CAD file:

Marco y contramarco de angulo estructural 1 1/2"x1 1/2"x 1/8" Cadena de cerramiento Aplanado Pulido de mortero cemento arena Muro de block de 12 cm. Media caña de concreto Firme de concreto de 10 cm de espesor Tuberia ADS REGISTRO SANITARIO RS1 -250.5494991000238 Paramento vivienda CS2 CS2 REGISTRO SANITARIO CS1 Pendiente -250.5494991000238 -250.5494991000238 CS1 variable -250.5494991000238 -250.5494991000239 REGISTRO SANITARIO RS2 Firme de concreto de 10 cm de espesor Media caña de concreto Muro de block de 12 cm. Aplanado Pulido de mortero cemento arena Cadena de cerramiento Marco y contramarco de angulo estructural 1 1/2"x1 1/2"x 1/8" -250.5494991000238 Banqueta -250.5494991000238 Pendiente Paramento vivienda \A1;0.50 \A1;0.60 \A1;0.40 \A1;0.60 \A1;0.10 \A1;0.40 \A1;0.50

Language	Spanish
Drawing Type	Plan
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
