Heaters In Battery DWG Detail for AutoCAD

Heaters In Battery DWG Detail for AutoCAD

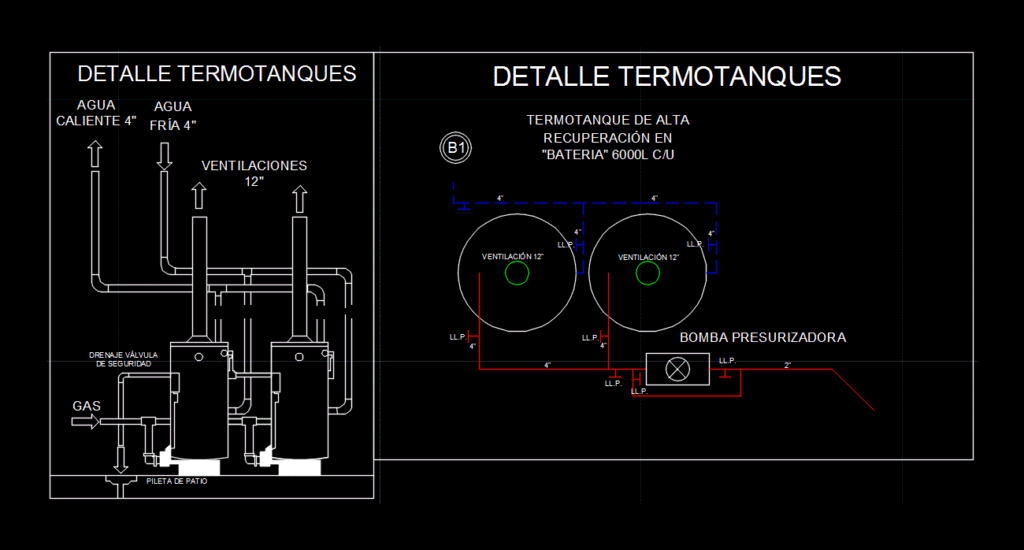

High recovery water heaters connected in parallel or battery. Detail and plant

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Hot water, cold water, Ventilations, gas, Drain valve safety, Patio sink, Ll.p., ventilation, High recovery water heater in, Pressurizing pump, Water heaters detail

Raw text data extracted from CAD file:

B1 \W6.07333; AGUA \W6.07333; CALIENTE 4" \W3.15757; AGUA \W1.95671; FRÍA 4" VENTILACIONES 12" \W5.75930; GAS DRENAJE VÁLVULA \W3.65064; DE SEGURIDAD \W2.24505; PILETA DE PATIO 4" 4" 4" 4" 4" 4" 4" LL.P. LL.P. LL.P. LL.P. LL.P. LL.P. LL.P. VENTILACIÓN 12" VENTILACIÓN 12" \W0.44005; TERMOTANQUE DE ALTA \W4.99186; RECUPERACIÓN EN \W4.46608; "BATERIA" 6000L C/U BOMBA PRESURIZADORA 2" DETALLE TERMOTANQUES DETALLE TERMOTANQUES

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
