Hospital 2D DWG Block For AutoCAD

Hospital 2D DWG Block For AutoCAD

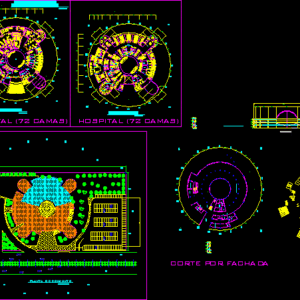

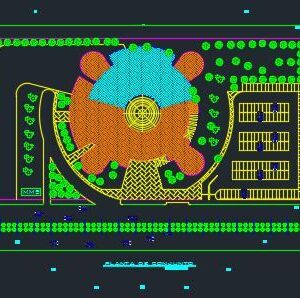

An architectural CAD drawing showing a 72 bed hospital includes a site plan, 2 floor plans, a cross section, having all features such as secretary office, emergency room, and doctors’ offices.

PREMIUM

File Details

File Type
DWG
Type
Block
Language
Spanish
Materials
Concrete, Masonry, Other
Units
Metric
Area
250 – 499 m² (2691.0 – 5371.2 ft²)
Features
Deck / Patio, Elevator, Garden / Park
Uploaded by
Engineer
Category
Hospital & Health Centres
Published
Dec 14, 2016
Price $3.87
or

or get unlimited access from $7/mo

Tags

autocad beds block CLINIC DWG health health center Hospital medical center plants schemes
