Technical Overview

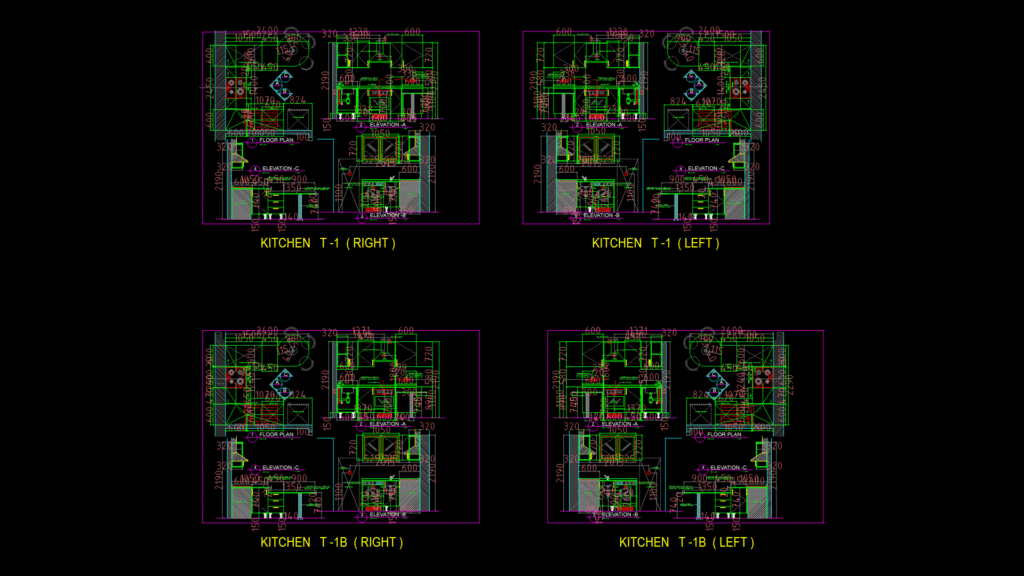

This drawing presents the design specifications for Type-1 and Type-1B kitchen layouts in both right and left configurations for an apartment building project. Each kitchen design includes a floor plan and three corresponding elevations (A, B, and C) drawn at scales of 1:20 and 1:10.
Kitchen Components & Specifications
Major Appliances:
– Built-in oven (BOB 60/90) with 45 amp electrical connection
– Extraction hood over cooking area
– Refrigerator space with 13 amp connection
– Washing machine (62cm) with dedicated 13 amp outlet and drain connection
Cabinetry:
– Base corner cabinet (BC105)
– Wall cabinets in various widths (W30, W45, W60, W105)
– Base cabinets with drawers (B30/B45)
– Wall corner cabinet (WC60)
Countertop:
– 20mm × 600mm Black Absoluto granite worktop
– Chrome finish metal post supports at specific locations
Electrical:
– 45 amp connections for cooker and built-in oven
– 15 amp for domestic appliances
– 13 amp connections for extractor fan, refrigerator, and washing machine
– Dedicated control switches for various elements
– Spot lighting fixtures
The key difference between Type-1 and Type-1B appears to be subtle variations in cabinet dimensions and configurations, with the Type-1B featuring B45 cabinets instead of B30 units in some positions. Both types are designed in mirror-image configurations (left/right) to accommodate different apartment layouts.
