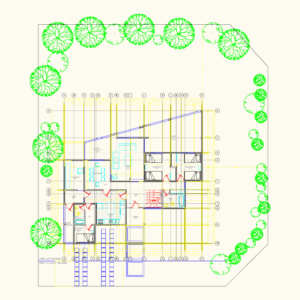

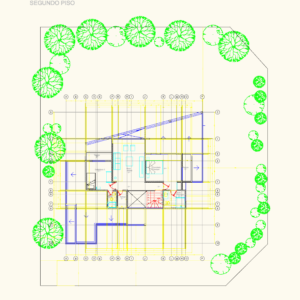

Architectural floor plans for the Casa Guillermo Perez project in Marbella, covering both the existing house and a planned expansion. The set includes the ground floor and second level layouts with room callouts for the master suite, kitchen, and covered terraces. Total living area reaches about 213 m2 across both floors. I’ve included the roof plan and the site location (emplazamiento) at a 1:75 scale. It’s all in metric meters.tables for surface area calculations are right there on the sheets.
Marbella House Plans DWG with Expansion Details
