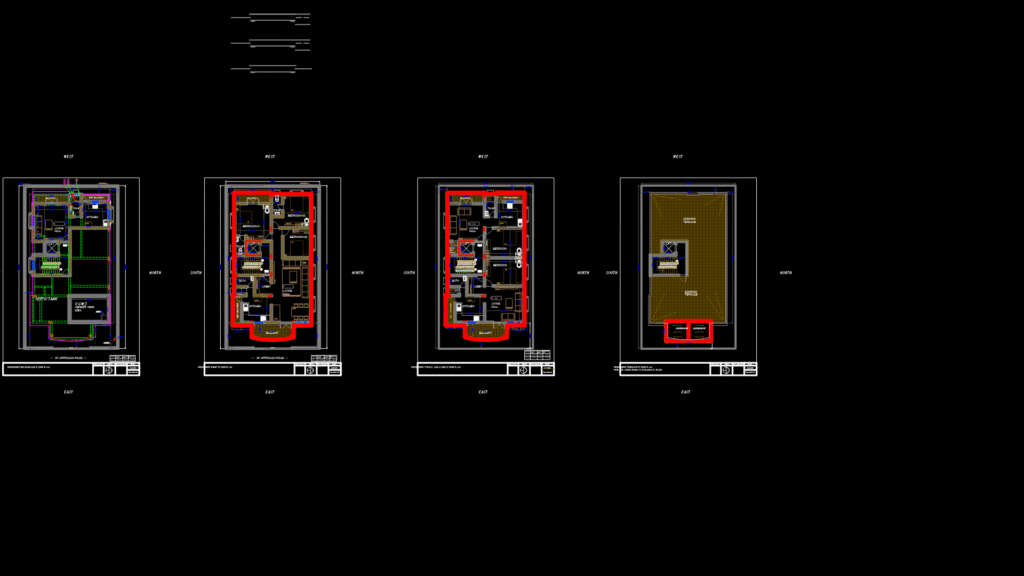

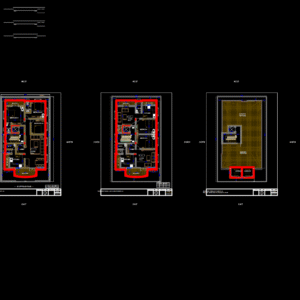

This comprehensive set of floor plans depicts a 3-story residential apartment building with detailed layouts for ground/parking, 1st, 2nd/3rd, and terrace floors. The design features two units per floor (201/301, 202/302) with floor-to-ceiling heights of approximately 3m. Each apartment includes bedrooms, living hall, kitchen, toilet, and bath facilities with precise room dimensions noted in both metric and imperial units. Key plumbing infrastructure is clearly delineated with 50mm waste water pipes, 100mm soil waste pipes, and integrated hot/cold water supply systems. The ground floor incorporates parking spaces, a 9000L underground water tank, septic system, and a 20′ approach road. The terrace floor includes a common area and sloping roof design. Notable design considerations include strategically placed balconies (including optional standing balconies) and careful attention to circulation with prominently marked stair access points.
Multi-Floor Residential Apartment Floor Plans with MEP integration
