One Family Housing–2 Bedrooms, Irregular Terrain DWG Full Project for AutoCAD

One Family Housing–2 Bedrooms, Irregular Terrain DWG Full Project for AutoCAD

PROJECT DEVELOPMENT IN IRREGULAR TERRAIN WITH ALL SERVICES DESIGNED FOR A MIDDLE CLASS FAMILY WITH ONE SON– 2 BEDROOMS, ONE BATHROOM LIVING – DINING, KITCHEN AND OUTDOOR LAUNDRY

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

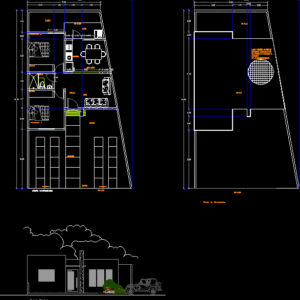

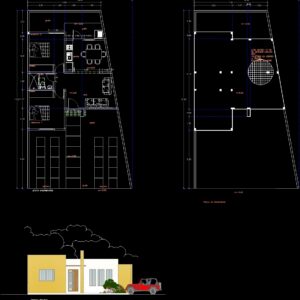

jeep, wrangler, closet, bathroom, living room, kitchen, patio, garden, garage, architectural plant, foundation plant, main facade

Raw text data extracted from CAD file:

\A1;10.00 \A1;2.53 \A1;1.05 \A1;1.63 \A1;1.80 \A1;17.00 \A1;2.13 \A1;0.65 \A1;3.15 \A1;1.65 \A1;1.77 \A1;2.03 \A1;5.63 \A1;7.00 \A1;1.50 \A1;0.80 \A1;0.90 \A1;0.21 \A1;1.00 \A1;0.65 \A1;2.58 \A1;0.28 \A1;0.50 \A1;0.80 \A1;0.20 \A1;1.00 \A1;0.20 \A1;10.00 \A1;17.00 \A1;7.00 \A1;3.65 \A1;1.40 \A1;0.30 \A1;1.65 \A1;2.05 \A1;0.65 \A1;6.73 \A1;0.69 \A1;1.33 \A1;5.55 Jeep WRANGLER Jeep Jeep closet closet baño sala comedor cocina recamara 2 recamara 1 patio jardin jardin jardin cochera planta arquitectonica n+-0.00 n+0.15 n+-0.00 cochera n+-0.00 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Planta de Cimentacion n+0.15 n+-0.00 n+-0.00 5 5 5 5 5 5 5 5 5 5 5 5 5 LOSA MACIZA 12 CM DE ESPESOR ARMADA CON V3/8"@20 CM CENTRO A CENTRO EN AMBOS SENTIDOS Fachada Principal

Language	Spanish
Drawing Type	Full Project
Category	House
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Deck / Patio, Garage
