1/100 scale 3-story residential architectural set

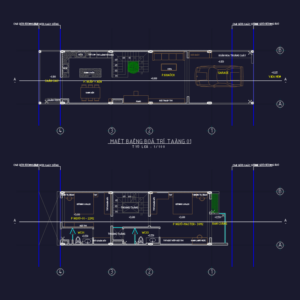

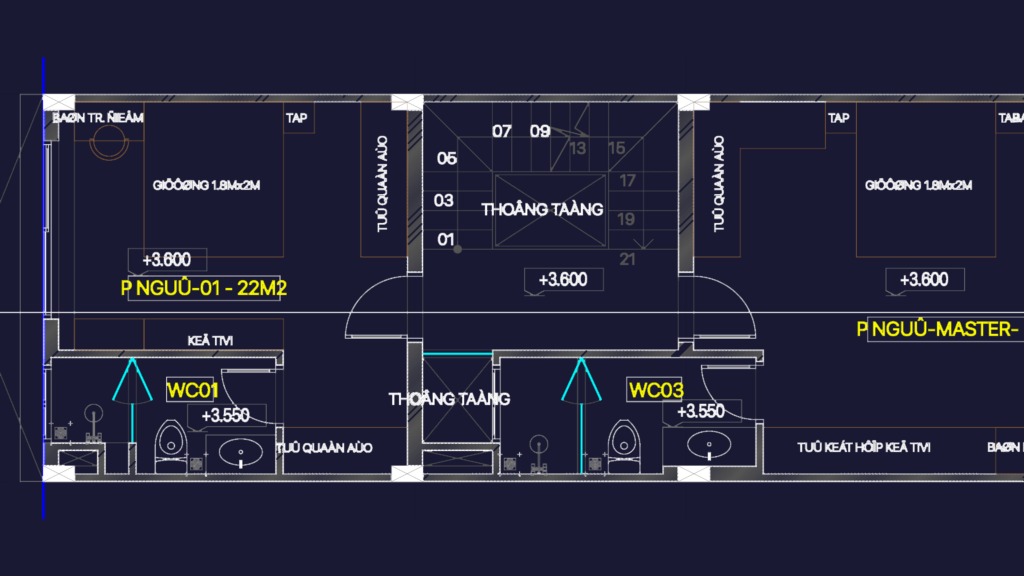

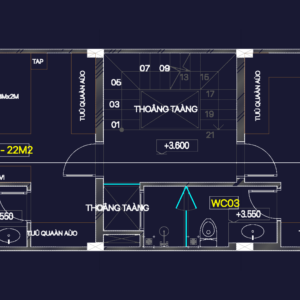

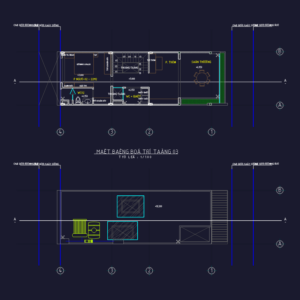

Architectural floor plan of a 3-story residence with room layouts, staircase details, and metric dimensions.

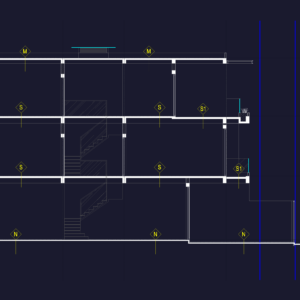

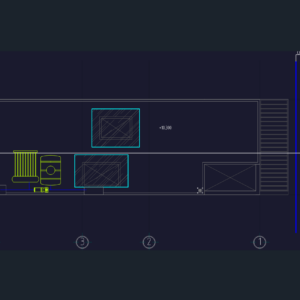

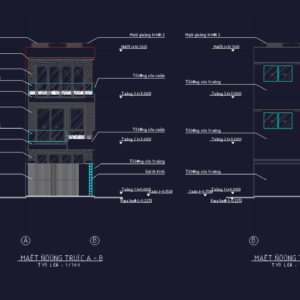

architectural layout for 3-story dwelling (+10.300 roof level) including floor plans, sections, & 1/25 interior details for millwork and CNC iron.

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Other
Materials
Concrete, Glass, Steel, Wood
Units
Metric
Area
150 – 249 m² (1614.6 – 2680.2 ft²)
Features
Garage, Deck / Patio, Garden / Park
Uploaded by
Mira Blocks
Category
House, Residential
Published
Jun 13, 2026
Price $3.87
or

or get unlimited access from $7/mo

Tags

architecture cad House Plan interior detail residential
