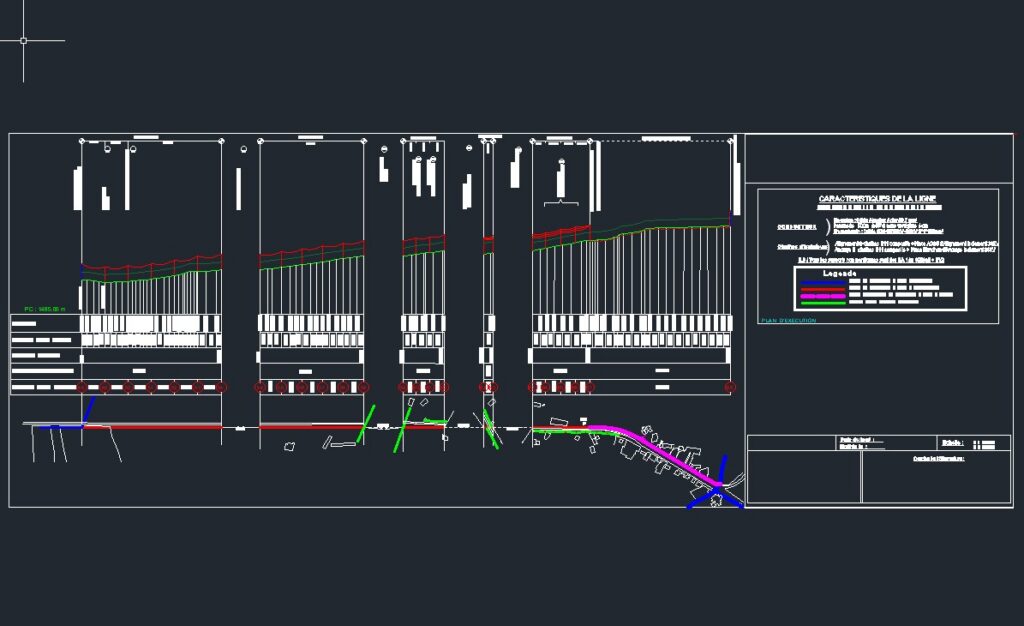

This DWG file contains a detailed longitudinal profile of a 22 kV medium voltage line, created with AutoCAD + Covadis.
Includes:
– Natural ground line (terrain naturel)
– Projected line (ligne projetée)
– Pylon positions and distances
– Elevation labels, spans, and slopes
Perfect for electrical engineers, surveyors, and design offices working on MV line projects.
⚙️ File type: DWG
💡 Compatible with AutoCAD 2018+
📏 Scale: 1/5000 (modifiable)
