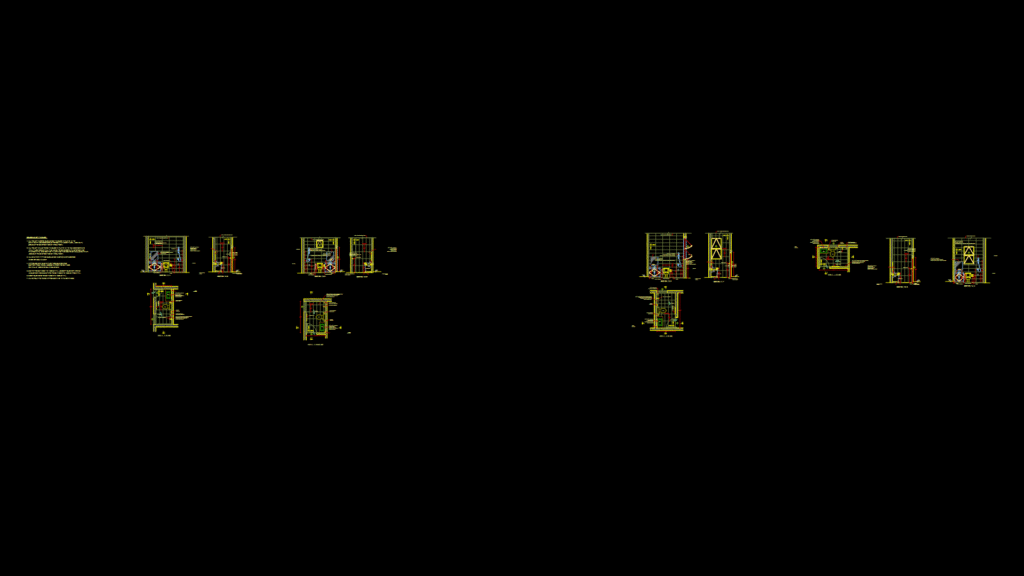

Residential Bathroom Detail Section Drawing with Multiple Toilet Layouts

This comprehensive bathroom detail drawing provides sectional views and specifications for five different toilet configurations (labeled Toilet 1-5). The drawing includes:

**Key Features and Specifications:**
– Multiple cross-sectional views (Sections A-A through H-H) showing fixture placement and wall construction
– Detailed wall tile specifications: 2′-0″ x 1′-0″ glazed ceramic wall tiles
– Floor finish: 2′-0″ x 1′-0″ heavy-duty homogeneous porcelain tiles (non-slip)
– Fixture heights: bib taps at 1′-6″ above FFL (2′-6″ in shower areas), bidet showers at 2′-3″ above FFL
– Mirror specifications: 2′-0″ x 2′-6″ 5mm clear float double-coated copper-free pencil-edged mirrors mounted 8″ above wash basins

**Fixture and Accessory Details:**
* Water closets (WC) with bidet shower attachments
* Wall-mounted wash basins with accessories (soap holders, paper holders)
* Shower fixtures with drainage solutions (6″ x 6″ catch pits with PVC gratings)
* 2″ and 3″ floor drops for proper drainage
* Single brick layer wall construction
* Timber or composite panel doors

The drawing includes a comprehensive finish schedule that specifies American Standard or equivalent sanitary fittings and details about paint finishes (one coat filler, two coats emulsion) above tile level, with architect-specified colors.
