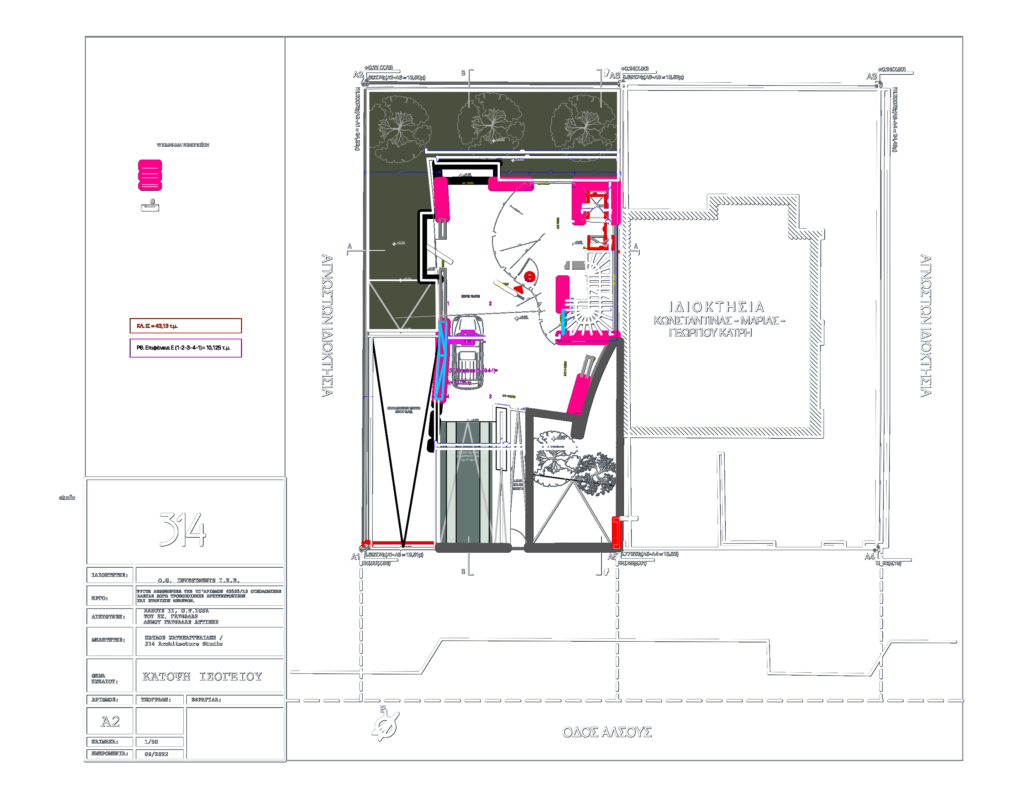

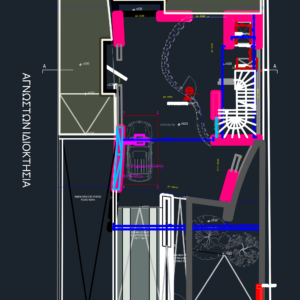

Ground floor site plan for a multi-unit residential project featuring pilotis parking and common vertical circulation. Incl. basement vehicle ramp (18.45% slope), ADA ramp (<5% slope), and landscaped areas with typ. tree clusters. Site plan covers property boundaries, setbacks, structural column layout, and statutory lighting/ventilation calcs. Κάτοψη ισογείου με χώρο pilotis και ράμπες.
Residential Ground Floor Site Plan with Accessibility Ramps and Parking
