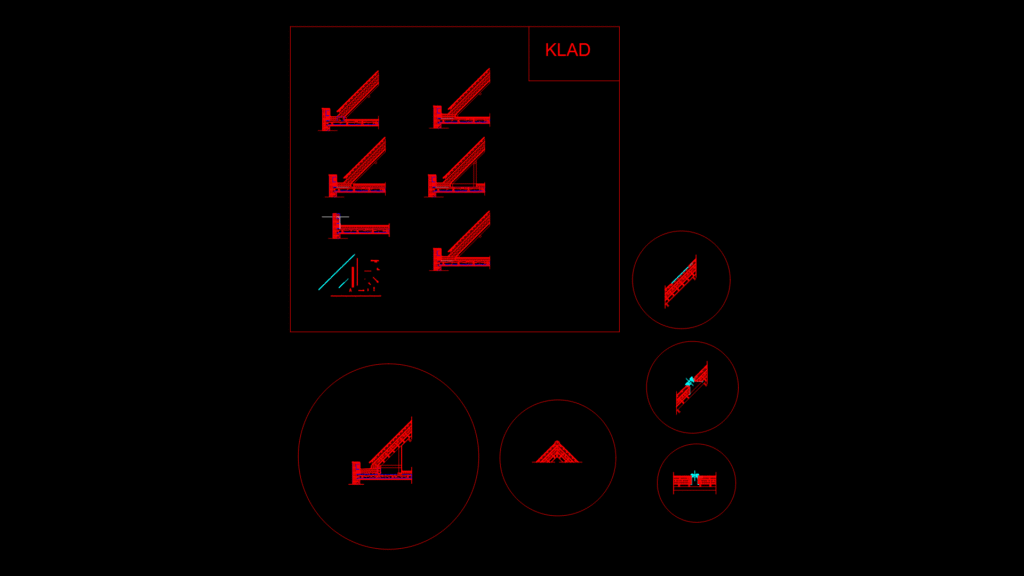

Comprehensive construction detail sections depicting roof-wall junctions for residential masonry building. The drawings showcase a pitched roof structure with timber framing (kepers 100×60 mm) connected to masonry walls with brick veneer cladding. Various junction details are illustrated, including the connection between predallen concrete floor elements (50 mm thick) and load-bearing clay brick walls (210x140x190 mm). The wall assembly features a multi-layered composition with interior gypsum plaster (10 mm), clay brick backing, EPS insulation boards (2×60 mm), and exterior brick veneer strips (240x22x40 mm). The reinforced concrete floor incorporates a 150 mm C30/37 concrete slab with 150/150/8/8 mm reinforcement mesh, topped with a 50 mm cement screed and integral 50/50/2/2 mm shrinkage mesh. These sections highlight the thermal bridging solutions and waterproofing details at critical junctions; particularly noteworthy is the careful integration of roof framing with the wall structure to maintain thermal continuity.
Residential Roof-Wall Junction Detail Sections for Masonry Construction
