Retaining Wall Detail DWG Detail for AutoCAD

Retaining Wall Detail DWG Detail for AutoCAD

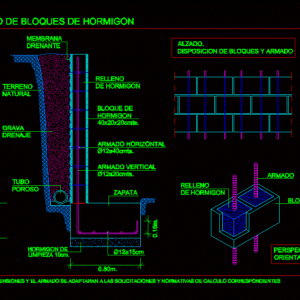

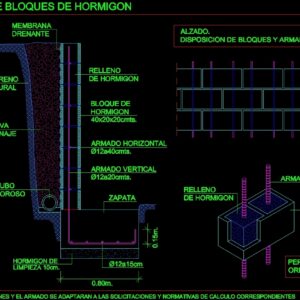

Detail of wall construction retaining wall

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cleaning, concrete, natural terrain, gravel drainage, draining membrane, porous tube, vertical armed, horizontal armed, concrete block, raised. armed block arrangement, guiding perspective, concrete fill, shoe, block, armed, concrete fill, concrete block wall, the dimensions of the assembly are adapted to the regulatory requirements for calculation

Raw text data extracted from CAD file:

0.15m. d12a15cm LIMPIEZA 10cm. HORMIGON DE 0.40m. 1.60 m. 0.80m. TERRENO NATURAL GRAVA DRENAJE MEMBRANA DRENANTE TUBO POROSO ARMADO VERTICAL d12a20cmts. ARMADO HORIZONTAL d12a40cmts. BLOQUE DE HORMIGON 40x20x20cmts. ALZADO. DISPOSICION DE BLOQUES Y ARMADO PERSPECTIVA ORIENTATIVA RELLENO DE HORMIGON ZAPATA BLOQUE ARMADO RELLENO DE HORMIGON MURO DE BLOQUES DE HORMIGON \U+25BA LAS DIMENSIONES Y EL ARMADO SE ADAPTARAN A LAS SOLICITACIONES Y NORMATIVAS DE CALCULO CORRESPONDIENTES

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, betonsteine, concrete block, construction, containment, DETAIL, DWG, retaining, wall, walls
