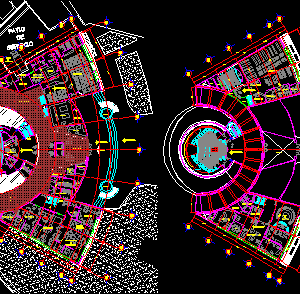

Science Museum with Auditorium 2D DWG Plan for AutoCAD

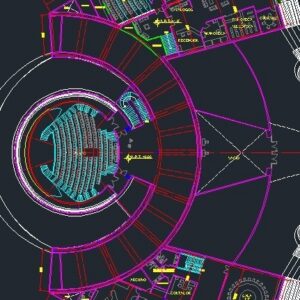

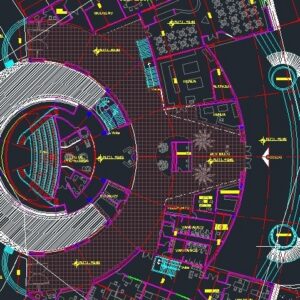

A building designed at two levels with a circular shaped auditorium having a large seating capacity and a screen. The various rooms related to science and technology have been planned pertaining to their functions. The circulation between different zones have been provided for easy movement.

Language Spanish
Drawing Type Plan
Category
Additional Screenshots Library, Auditorium, Administration, Meeting rooms
Engineering, Cafeteria, Grand Entry, Atrium,
File Type dwg, zip
Materials Concrete, Glass, Masonry, Steel, Wood
Measurement Units Metric
Footprint Area 2500 - 4999 m² (26909.8 - 53808.7 ft²)
Building Features Deck / Patio, Garden / Park
Tags , , , , , , , , , , , , , ,
