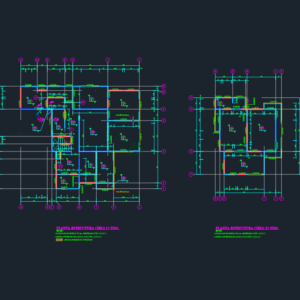

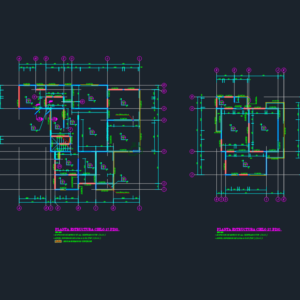

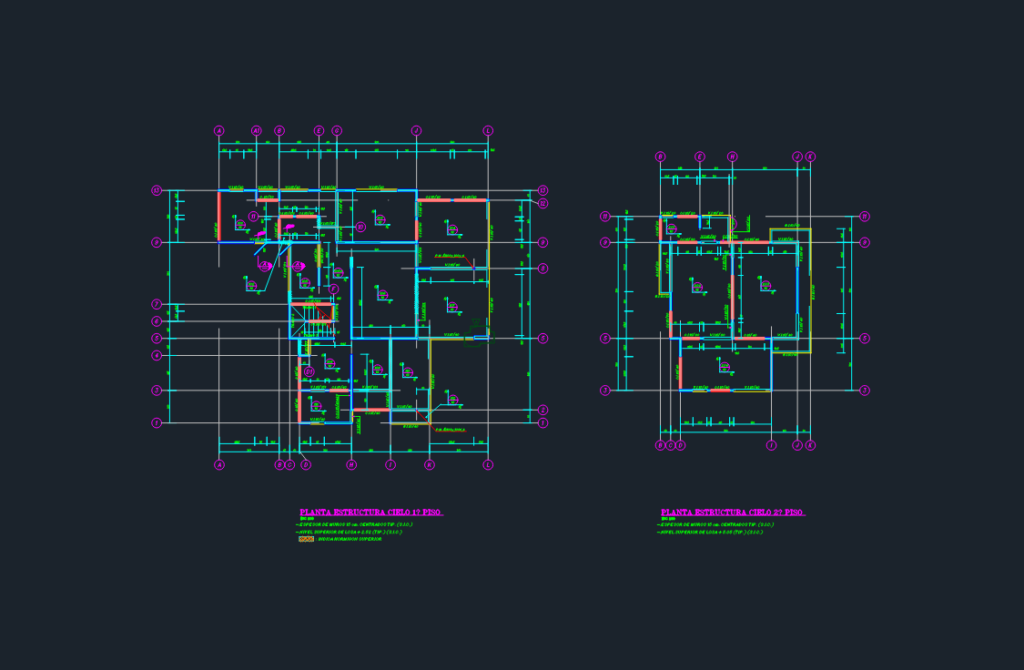

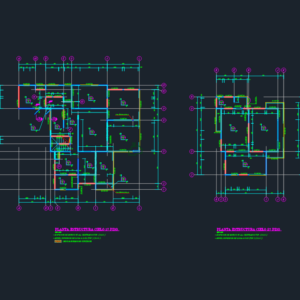

Structural ceiling plans for a two-story residential project (Casa Tipo D). Includes detailed layouts for both the first and second floors with wall thicknesses of 15 cm (centrados tip.). Slab levels are specified at +2.52m for the first floor and +5.05m for the second floor. Detailed sections for beams (vigas) and columns (pilares) such as Detalle Pilar 15/25 are included. The drawing features reinforcement details (e.g., %%c8a20), masonry specs (albañilería), and structural nodes. Technical layers cover everything from foudnation (fundaciones) to steel bars (barras) and axes (ejes). Developed by C. Delporte V. for the Plaza Los Nogales project. Planos de estructura de cielo para primer y segundo piso. Detalles de muros, vigas y pilares.
Structural Ceiling Plans for Type D House DWG – 1st and 2nd Floor
