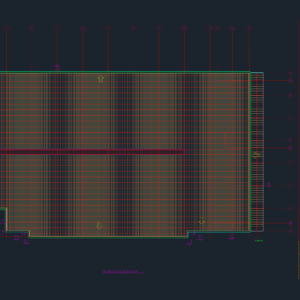

Roof plan for a large-scale industrial distribution center (CD Contagem) for Tambasa. Metal structure project including ridge vent (lanternim) & transkucent roofing sections for zenital lighting. Shows water tower (castelo d’água) positioning, canopy (marquise) details, and mezzanine projection. – Scale: 1:200 – Dims: all in mm (E.A.) – Structural grid: Axis 1-15 and A-H – Materials: Metallic structure / structural steel Part of a basic project set for industrial logistics hubs. Includes roof drainage directions and gutter zones. Overall footprint measures approx. 210m x 118m. Drawing is sheet P-002 from a larger structural set
Tambasa Distribution Center Metallic Structure Roof Plan
