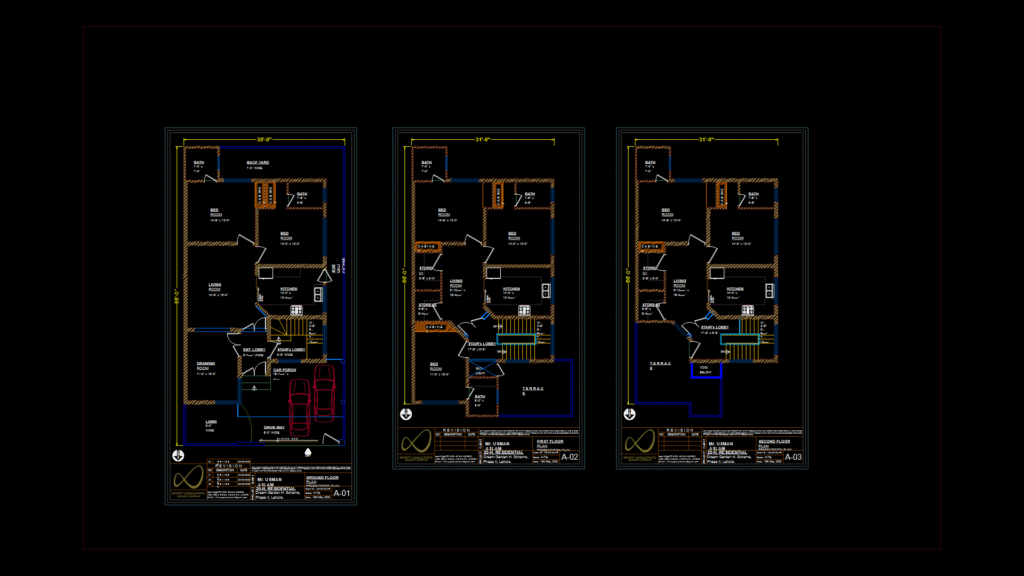

Complete architectural floor plan set for a three-story residential building in Dream Garden Housing Scheme, Lahore. This 56′ × 35′ structure features:
Ground Floor (A-01): Main entrance with lobby (5′-7″ wide), drawing room (11′ × 15′), living room (14′-9″ × 18′), kitchen (14′ × 10′-4″), two bedrooms (14′-9″ × 13′ and 14′ × 12′), two bathrooms, car porch (16′-1″ × 10′-4″), driveway (6′-3″ wide), and perimeter lawn (9′ wide).
First Floor (A-02): Living area (8′-10″ × 16′-4″), bedroom (11′ × 15′), bathroom (6′ × 9′), two storage rooms (5′-6″ × 8′ and 5′-6″ × 6′-4″), stair lobby (17′-9″ × 8′-9″), and terrace space with sliding doors for outdoor access.
Second Floor (A-03): Additional bedroom with bathroom, stair lobby with skylight (dimensions W:3′-6″, R:6″, T:10″), and open terrace area.
Designed for 32° North latitude with incorporated sun path diagram for passive solar considerations. Features include sliding doors, built-in cabinetry, and integrated furniture layouts. Project designed by Infinity Consultants for client Mr. Usman Aslam (Client ID: AD-0216LHR).
