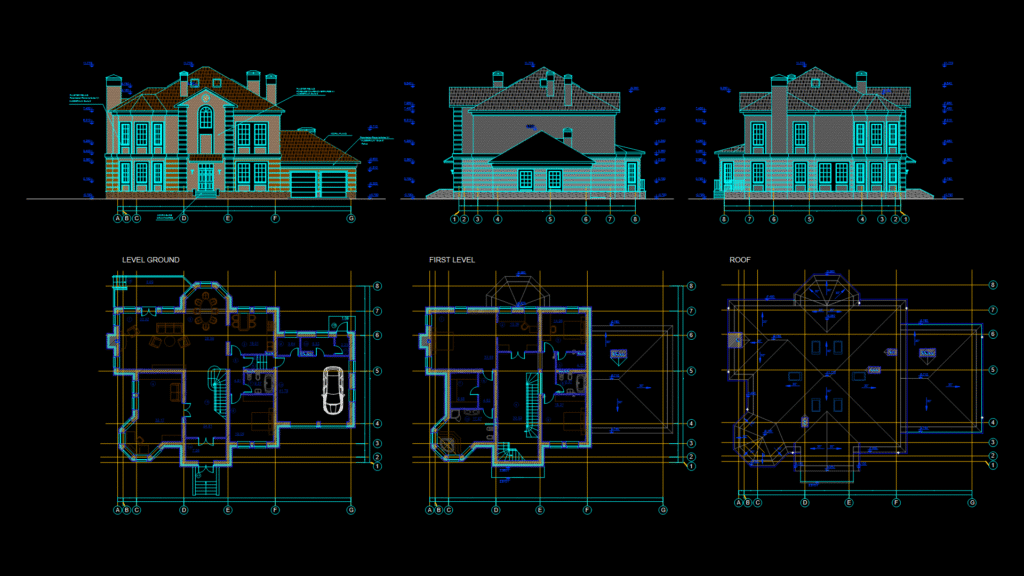

This comprehensive set of architectural drawings depicts a two-story residential villa with garage. The package includes three detailed elevations (front, rear, and side), along with floor plans for the ground level, first level, and roof layout. The ground floor features a spacious living area with circular dining space, kitchen, bathroom, and attached two-car garage. The first floor contains multiple bedrooms, bathrooms, and a central staircase. The structure incorporates a pitched roof (30° slope) with multiple chimney elements. Key dimensions include approximately 33m width and 15m depth, with 2.76m floor-to-ceiling heights. The building utilizes a combination of plaster finishes (RELIUS brand), with decorative elements including arched windows and corner quoins. The architectural grid system employs 8 vertical and 7 horizontal axes for precise construction reference. Material specifications include Porenbeton-Renovierfarbe N1 in NUSSBRAUN Stufe 8 for certain exterior finishes and ICOPAL PLANO for roofing elements.
Two-Story Residential Villa Floor plans with Multiple Elevations
