1 1/2″ stainless steel flexible hose installation detail

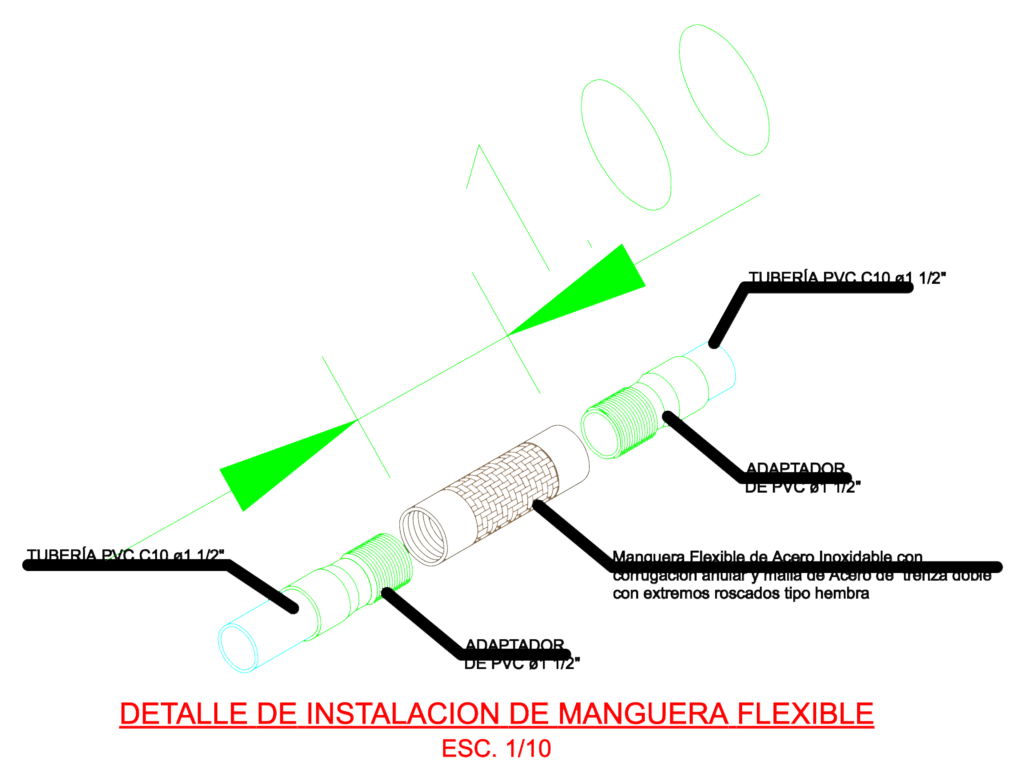

Isometric CAD detail of a flexible stainless steel hose connected to 1.5-inch PVC piping with adapters.

stainless steel flexible hose with double braid mesh and 1 1/2″ PVC adapters.

FREE

File Details

File Type
DWG
Type
Detail
Language
Spanish
Materials
Steel, Plastic
Units
Metric
Uploaded by
Eng_Plans
Category
Bathroom, Plumbing & Pipe Fittings, Residential
Published
Jul 20, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

1.5 inch adapter ASSEMBLY DWG flexible hose hydraulic irrigation manguera flexible plumbing block plumbing detail PVC pipe stainless steel
