10th Floor Apartment Plan DWG – Residential Block Layout

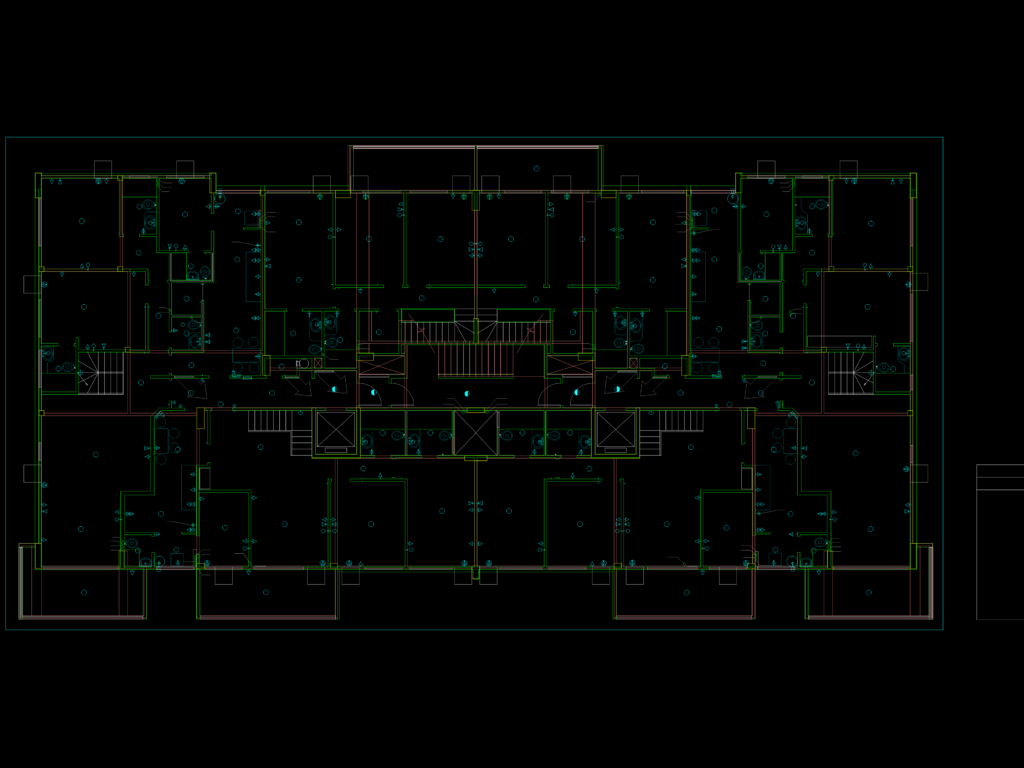

2D CAD floor plan of a 10th-floor apartment building layout featuring unit interiors and common service areas.

Floor plan for a 10th-floor residential level, incl. layouts for multiple apartment units with suites, service areas & balconies. Shows core areas like stairs and elevator lobbies, electrical points, etc Planta do 10º pavimento – Bloco 2

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
Portuguese
Materials
Concrete, Masonry
Units
Metric
Area
500 – 999 m² (5382.0 – 10753.1 ft²)
Features
Elevator, Deck / Patio
Uploaded by
DWG Master
Category
Apartment, Residential
Published
Apr 22, 2026
Price $8.50
or

or get unlimited access from $7/mo

Tags

10th floor apartamento residencial apartment Architecture Drawing autocad balcony bedroom building block condo plan DWG elevator lobby floor plan kitchen layout design Living room multifamily housing planta baixa Portuguese CAD residentialLayout service area stairs detail suite
